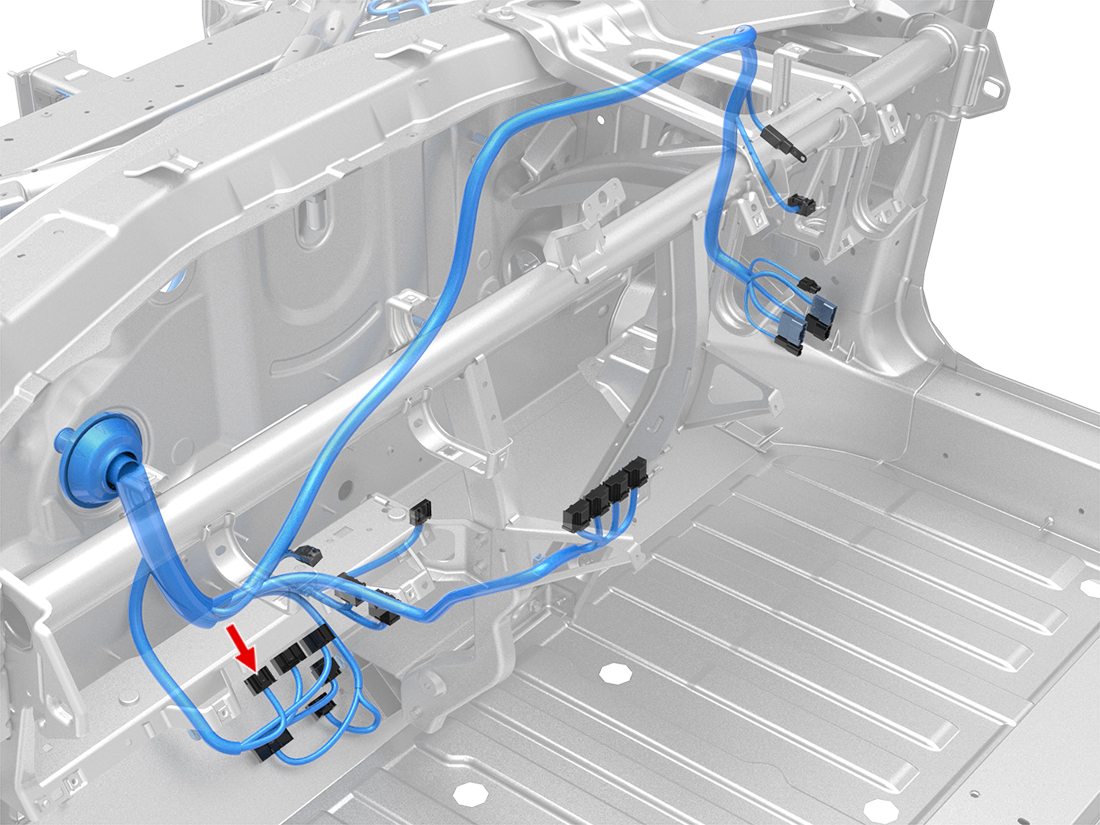

Connector Detail: SUMITOMO 6098-5627
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 0.35 | SN | X563-35 | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 2 | WH/BU | 0.35 | SN | X020-4 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 3 | WH/RD | 0.35 | SN | X020-17 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | GN/WH | 0.35 | SN | X777-4 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 7 | BN/WH | 0.35 | SN | X540-3 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | RD | 0.5 | SN | X033-B | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 10 | VT | 0.5 | SN | X925F-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 11 | RD/BK | 0.5 | SN | X030-A | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 12 | RD/GY | 0.75 | SN | X966M-14 | SUMITOMO 8240-0213 | | 1099539-00-A | |
| 13 | GY/WH | 0.35 | SN | X020-5 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 14 | RD/BU | 0.35 | SN | X020-13 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 16 | GN | 0.35 | SN | X777-15 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 17 | BN | 0.35 | SN | X540-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 18 | RD | 0.35 | SN | X276-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 19 | RD/GN | 0.35 | SN | X277-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 20 | VT | 0.75 | SN | X966M-4 | SUMITOMO 8240-0213 | | 1099539-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 0.35 | SN | X563-35 | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 2 | WH/BU | 0.35 | SN | X020-4 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 3 | WH/RD | 0.35 | SN | X020-17 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | GN/WH | 0.35 | SN | X777-4 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 7 | BN/WH | 0.35 | SN | X540-3 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | RD | 0.5 | SN | X033-B | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 10 | VT | 0.5 | SN | X925F-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 11 | RD/BK | 0.5 | SN | X030-A | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 12 | RD/GY | 0.75 | SN | X966M-14 | SUMITOMO 8240-0213 | | 1099539-00-A | |
| 13 | GY/WH | 0.35 | SN | X020-5 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 14 | RD/BU | 0.35 | SN | X020-13 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 16 | GN | 0.35 | SN | X777-15 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 17 | BN | 0.35 | SN | X540-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 18 | RD | 0.35 | SN | X276-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 19 | RD/GN | 0.35 | SN | X277-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 20 | VT | 0.75 | SN | X966M-4 | SUMITOMO 8240-0213 | | 1099539-00-A | |
