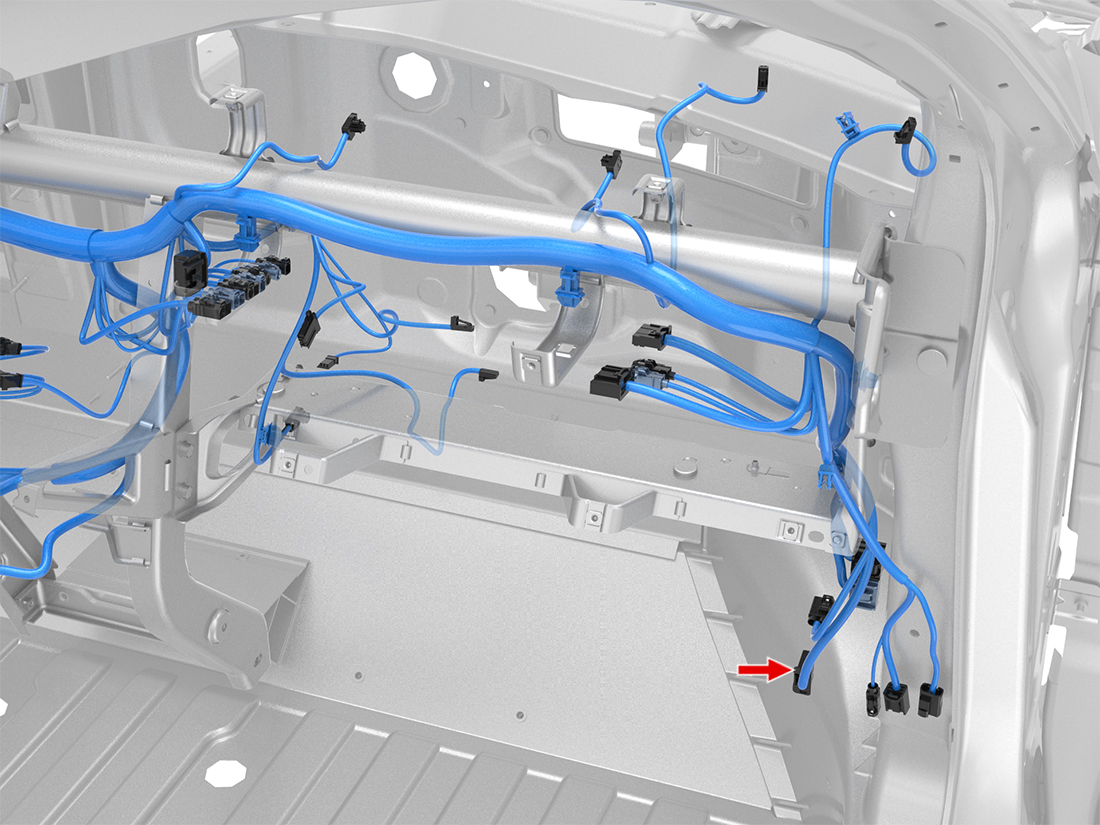

Connector Detail: SUMITOMO 6098-5641
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/VT | 0.35 | SN | X576-8 | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 2 | RD/BU | 0.5 | SN | X150-4 | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 5 | BU | 0.35 | SN | X429-14 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | RD/WH | 0.35 | SN | X772-11 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 8 | GN/WH | 0.35 | SN | X773-13 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | BU/WH | 0.35 | SN | X150-7 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 10 | OG | 0.75 | SN | X427-14 | SUMITOMO 8240-0213 | | 1099539-00-A | |
| 11 | OG/BK | 0.75 | SN | X427-18 | SUMITOMO 8240-0213 | | 1099539-00-A | |
| 15 | RD | 0.35 | SN | X772-22 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 16 | GN | 0.35 | SN | X773-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 17 | BU | 0.35 | SN | X150-6 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 18 | RD | 0.5 | SN | X150-5 | SUMITOMO 8240-0215 | | 1099541-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/VT | 0.35 | SN | X576-8 | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 2 | RD/BU | 0.5 | SN | X150-4 | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 5 | BU | 0.35 | SN | X429-14 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | RD/WH | 0.35 | SN | X772-11 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 8 | GN/WH | 0.35 | SN | X773-13 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | BU/WH | 0.35 | SN | X150-7 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 10 | OG | 0.75 | SN | X427-14 | SUMITOMO 8240-0213 | | 1099539-00-A | |
| 11 | OG/BK | 0.75 | SN | X427-18 | SUMITOMO 8240-0213 | | 1099539-00-A | |
| 15 | RD | 0.35 | SN | X772-22 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 16 | GN | 0.35 | SN | X773-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 17 | BU | 0.35 | SN | X150-6 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 18 | RD | 0.5 | SN | X150-5 | SUMITOMO 8240-0215 | | 1099541-00-A | |
