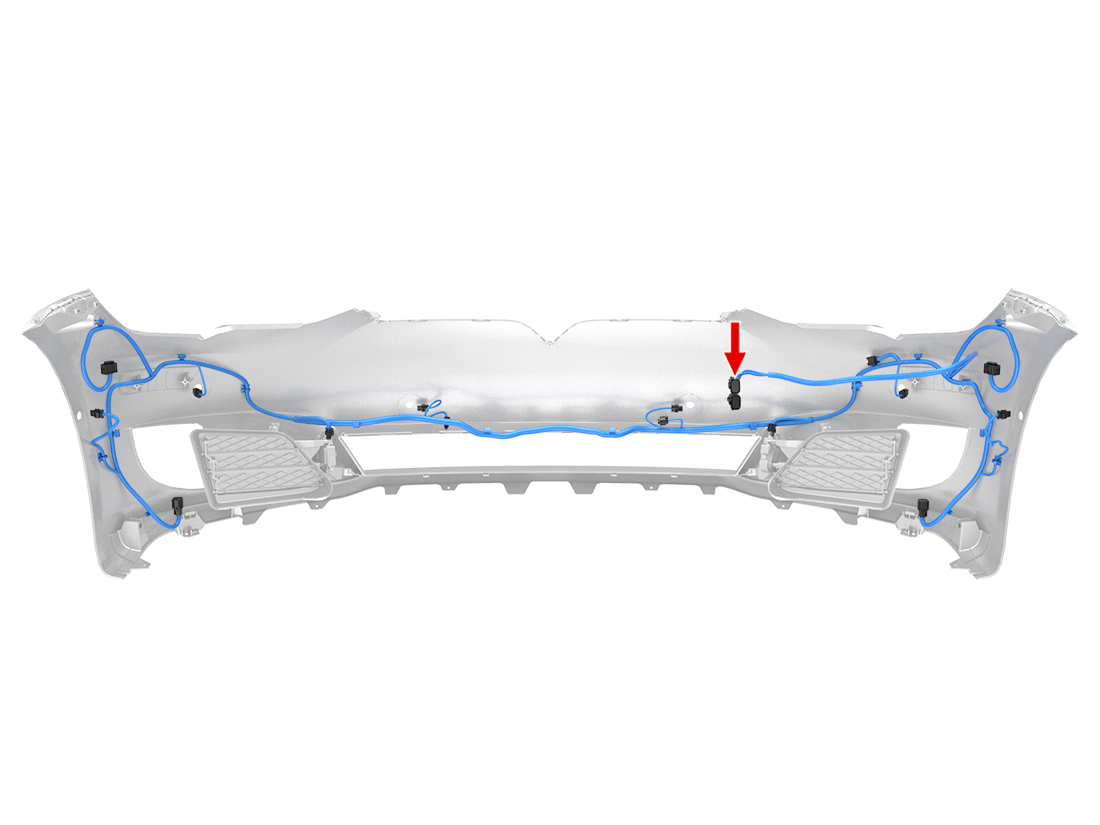

Connector Detail: MOLEX 33472-1201
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN | 0.35 | SN | Z47-WPA27-R | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 2 | RD/VT | 0.35 | SN | Z34-WPA28-R | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 3 | RD/GN | 0.35 | SN | X125A-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 4 | WH | 0.35 | SN | X126A-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 5 | BN/WH | 0.35 | SN | X127A-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 6 | OG/BK | 0.35 | SN | X128A-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 7 | RD/YE | 0.35 | SN | X133A-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 8 | BU/WH | 0.35 | SN | X132A-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 9 | OG/BK | 0.5 | SN | X762-6 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 10 | OG | 0.5 | SN | X762-3 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN | 0.35 | SN | Z47-WPA27-R | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 2 | RD/VT | 0.35 | SN | Z34-WPA28-R | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 3 | RD/GN | 0.35 | SN | X125A-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 4 | WH | 0.35 | SN | X126A-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 5 | BN/WH | 0.35 | SN | X127A-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 6 | OG/BK | 0.35 | SN | X128A-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 7 | RD/YE | 0.35 | SN | X133A-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 8 | BU/WH | 0.35 | SN | X132A-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 9 | OG/BK | 0.5 | SN | X762-6 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 10 | OG | 0.5 | SN | X762-3 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
