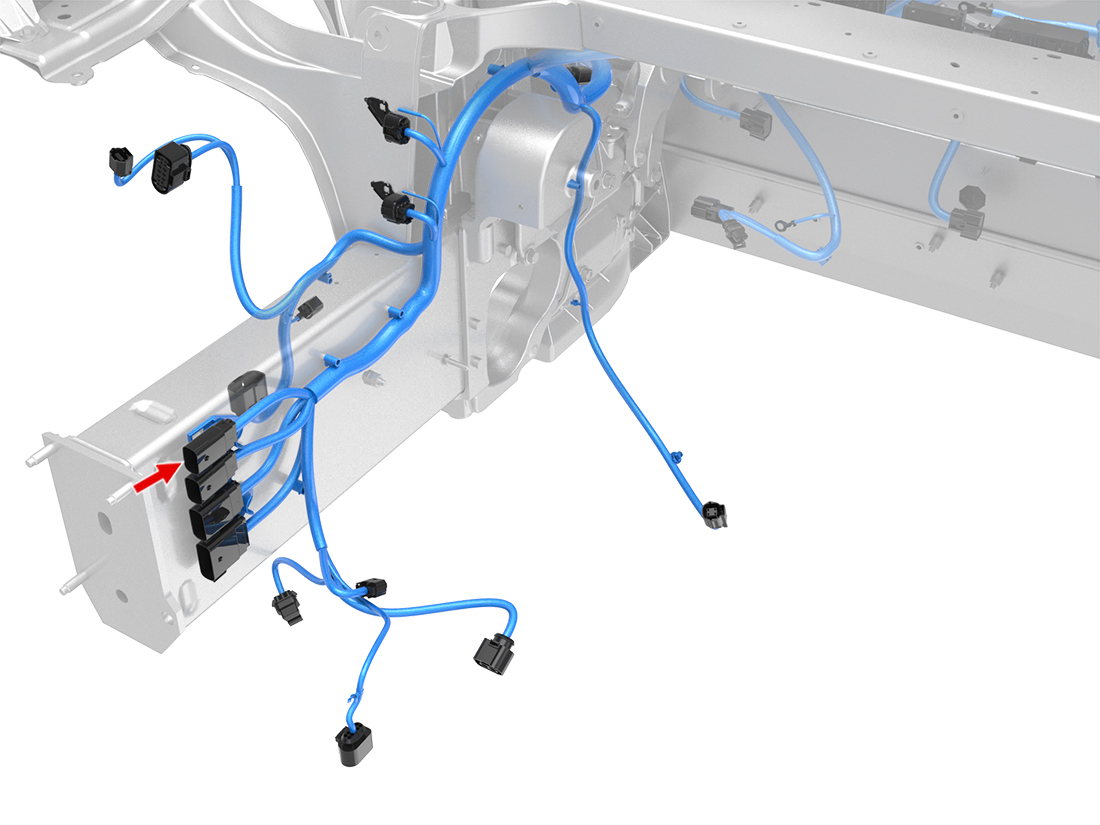

Connector Detail: MOLEX 33482-6201
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN | 0.35 | SN | X977M-8 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 2 | RD/VT | 0.35 | SN | X977M-9 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 3 | RD/GN | 0.35 | SN | X977M-10 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 4 | WH | 0.35 | SN | X977M-11 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 5 | BN/WH | 0.35 | SN | X977M-19 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 6 | OG/BK | 0.35 | SN | X977M-20 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 7 | RD/YE | 0.35 | SN | X977M-22 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 8 | BU/WH | 0.35 | SN | X977M-21 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN | 0.35 | SN | X977M-8 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 2 | RD/VT | 0.35 | SN | X977M-9 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 3 | RD/GN | 0.35 | SN | X977M-10 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 4 | WH | 0.35 | SN | X977M-11 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 5 | BN/WH | 0.35 | SN | X977M-19 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 6 | OG/BK | 0.35 | SN | X977M-20 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 7 | RD/YE | 0.35 | SN | X977M-22 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 8 | BU/WH | 0.35 | SN | X977M-21 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
