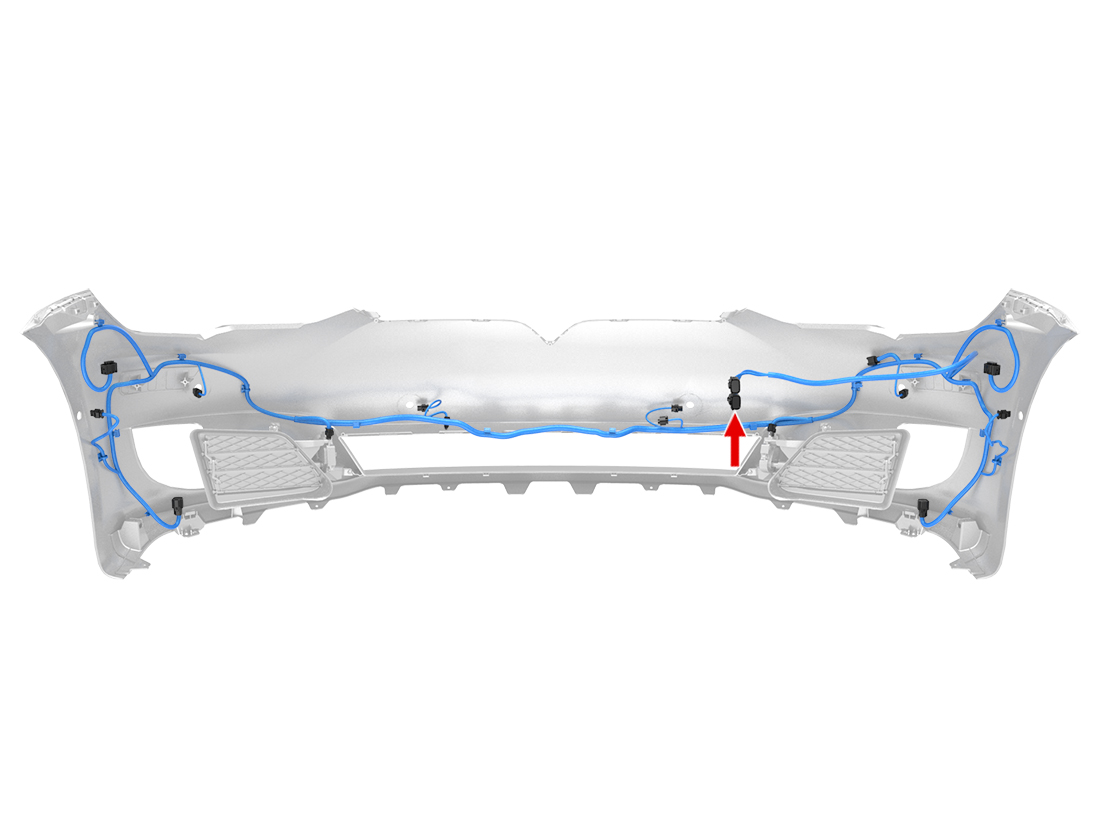

Connector Detail: MOLEX 33472-1202
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.35 | SN | X265-3 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 2 | BU | 0.35 | SN | X265-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 3 | YE | 0.35 | SN | X265-4 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 4 | BU/WH | 0.35 | SN | X266-3 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 5 | RD/WH | 0.35 | SN | X266-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 6 | GN/RD | 0.35 | SN | X266-4 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 7 | WH | 0.5 | SN | Z4-+PDR12_F-R | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 8 | RD/BU | 0.5 | SN | Z50-PHC16_E-R | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 9 | GN | 0.35 | SN | Z6-HVC25-R | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 10 | BN/WH | 0.5 | SN | X091-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 11 | GY | 0.5 | SN | X091-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 12 | BK | 0.75 | SN | Z45-+GDA07-R | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.35 | SN | X265-3 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 2 | BU | 0.35 | SN | X265-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 3 | YE | 0.35 | SN | X265-4 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 4 | BU/WH | 0.35 | SN | X266-3 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 5 | RD/WH | 0.35 | SN | X266-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 6 | GN/RD | 0.35 | SN | X266-4 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 7 | WH | 0.5 | SN | Z4-+PDR12_F-R | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 8 | RD/BU | 0.5 | SN | Z50-PHC16_E-R | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 9 | GN | 0.35 | SN | Z6-HVC25-R | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 10 | BN/WH | 0.5 | SN | X091-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 11 | GY | 0.5 | SN | X091-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 12 | BK | 0.75 | SN | Z45-+GDA07-R | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
