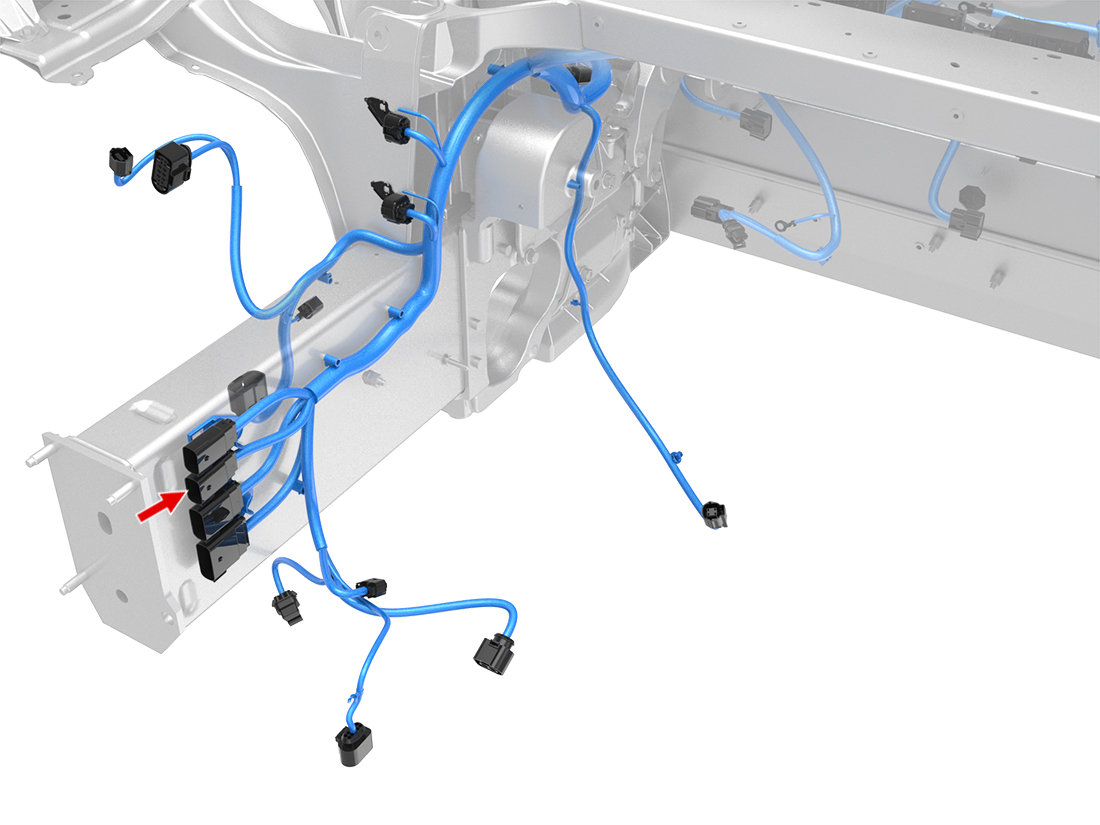

Connector Detail: MOLEX 33482-6202
Color: LightGray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.35 | SN | X020-11 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 2 | BU | 0.35 | SN | X020-10 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 3 | YE | 0.35 | SN | X020-2 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 4 | BU/WH | 0.35 | SN | X020-24 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 5 | RD/WH | 0.35 | SN | X020-9 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 6 | GN/RD | 0.35 | SN | X020-1 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 8 | RD/BU | 0.5 | SN | Z76-PHC16_E-L | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 9 | GN | 0.35 | SN | Z43-HVC25-L | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 10 | BN/WH | 0.35 | SN | X581-4 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 11 | GY | 0.35 | SN | X953F-17 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 12 | BK | 0.75 | SN | G510-1 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.35 | SN | X020-11 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 2 | BU | 0.35 | SN | X020-10 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 3 | YE | 0.35 | SN | X020-2 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 4 | BU/WH | 0.35 | SN | X020-24 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 5 | RD/WH | 0.35 | SN | X020-9 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 6 | GN/RD | 0.35 | SN | X020-1 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 8 | RD/BU | 0.5 | SN | Z76-PHC16_E-R | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 9 | GN | 0.35 | SN | Z43-HVC25-R | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 10 | BN/WH | 0.35 | SN | X581-4 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 11 | GY | 0.35 | SN | X953F-17 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 12 | BK | 0.75 | SN | G510-1 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
