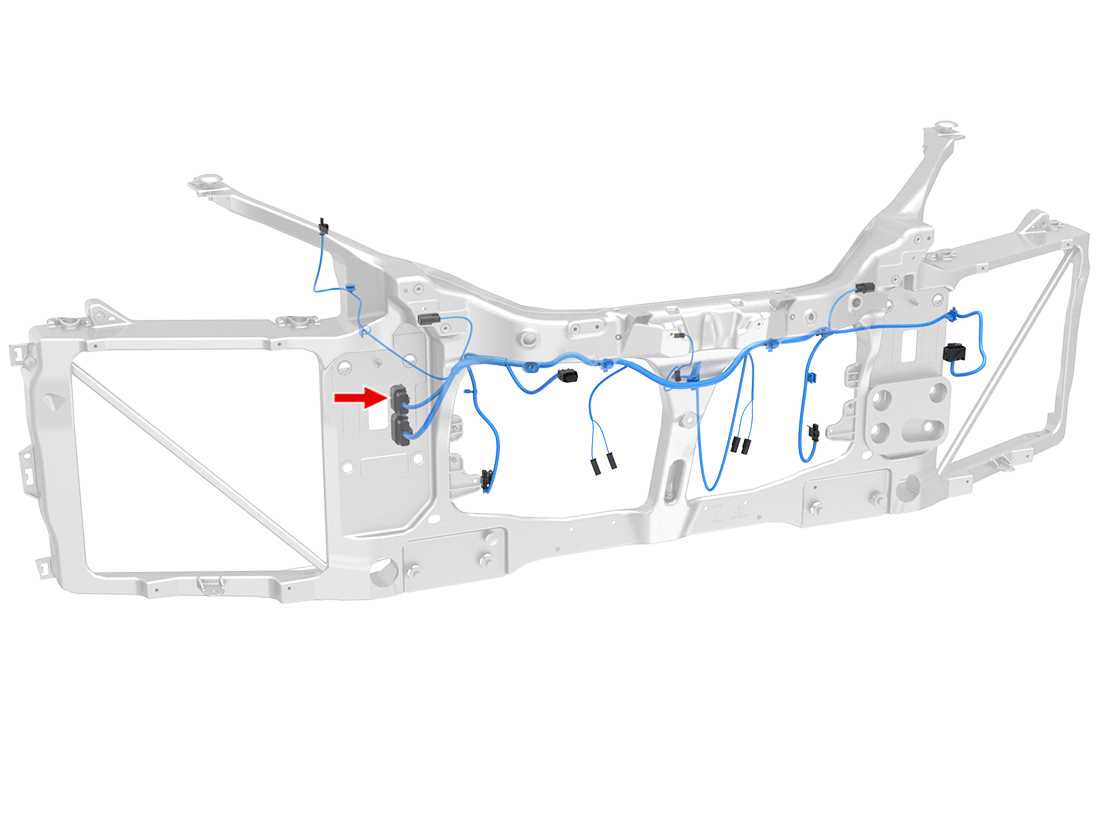

Connector Detail: MOLEX 33472-1601
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.35 | SN | X138-4 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 2 | BU/WH | 0.35 | SN | X138-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 3 | BU | 0.35 | SN | X138-3 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 4 | BK | 0.5 | SN | Z71-+GDB01-R | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 5 | RD | 0.5 | SN | X202-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 6 | VT/WH | 0.5 | SN | X202-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 7 | OG | 0.75 | SN | X415-1 | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 8 | OG/BK | 0.75 | SN | X415-2 | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 12 | BN | 0.5 | SN | X383-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 13 | RD/GN | 0.5 | SN | X203-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 14 | BN/WH | 0.5 | SN | X203-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.35 | SN | X138-4 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 2 | BU/WH | 0.35 | SN | X138-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 3 | BU | 0.35 | SN | X138-3 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 4 | BK | 0.5 | SN | Z71-+GDB01-R | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 5 | RD | 0.5 | SN | X202-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 6 | VT/WH | 0.5 | SN | X202-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 7 | OG | 0.75 | SN | X415-1 | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 8 | OG/BK | 0.75 | SN | X415-2 | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 12 | BN | 0.5 | SN | X383-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 13 | RD/GN | 0.5 | SN | X203-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 14 | BN/WH | 0.5 | SN | X203-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
