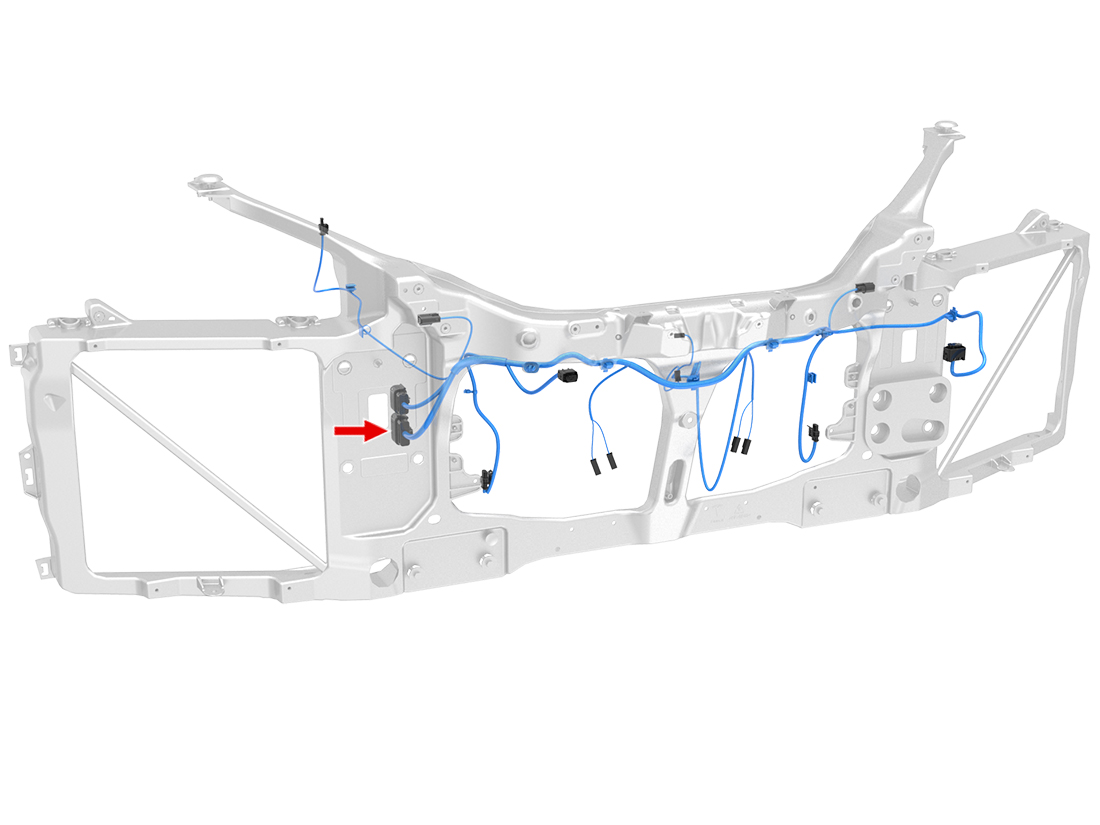

Connector Detail: MOLEX 33472-2002
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | RD/BU | 0.5 | SN | Z56-PHC16_C-R | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 3 | GN | 0.35 | SN | Z41-HVC25-R | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 4 | VT | 0.75 | SN | X484A-1 | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 5 | BK | 0.75 | SN | X484B-1 | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 7 | RD/YE | 0.5 | SN | X379-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 8 | BK | 0.5 | SN | Z71-+GDB01-R | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 9 | RD/VT | 0.5 | SN | X399-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 10 | WH/BK | 0.5 | SN | X399-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 12 | VT/WH | 0.35 | SN | X138-5 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 13 | VT | 0.35 | SN | X138-6 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 14 | RD/GY | 0.75 | SN | X485A-1 | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 15 | BK | 0.75 | SN | X485B-1 | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 16 | VT | 0.35 | SN | X288-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 17 | WH | 0.35 | SN | X435A-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 18 | BK/VT | 0.35 | SN | X435A-3 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 19 | RD/GN | 0.5 | SN | X392-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 20 | GY/WH | 0.5 | SN | X392-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | RD/BU | 0.5 | SN | Z56-PHC16_C-R | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 3 | GN | 0.35 | SN | Z41-HVC25-R | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 4 | VT | 0.75 | SN | X484A-1 | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 5 | BK | 0.75 | SN | X484B-1 | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 7 | RD/YE | 0.5 | SN | X379-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 8 | BK | 0.5 | SN | Z71-+GDB01-R | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 9 | RD/VT | 0.5 | SN | X399-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 10 | WH/BK | 0.5 | SN | X399-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 12 | VT/WH | 0.35 | SN | X138-5 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 13 | VT | 0.35 | SN | X138-6 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 14 | RD/GY | 0.75 | SN | X485A-1 | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 15 | BK | 0.75 | SN | X485B-1 | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 16 | VT | 0.35 | SN | X288-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 17 | WH | 0.35 | SN | X435A-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 18 | BK/VT | 0.35 | SN | X435A-3 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 19 | RD/GN | 0.5 | SN | X392-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 20 | GY/WH | 0.5 | SN | X392-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
