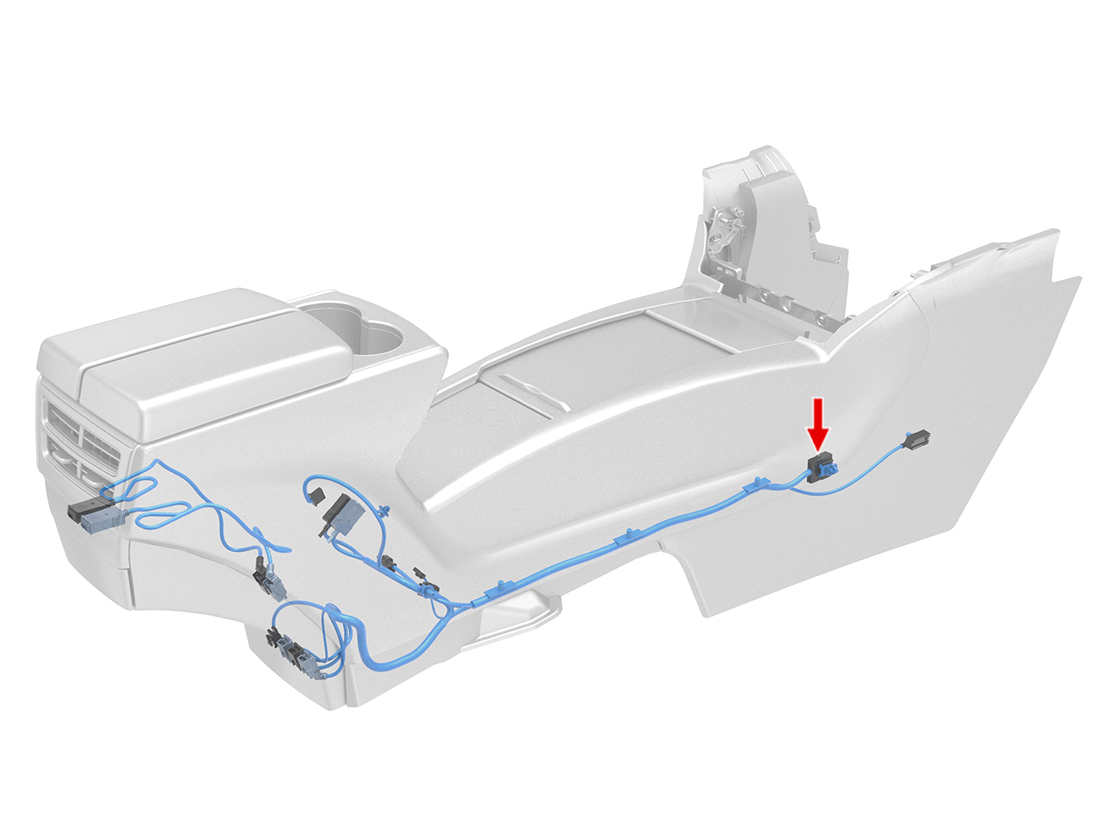

Connector Detail: SUMITOMO 6098-5594
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.75 | SN | X522-1 | SUMITOMO 8230-4924 | | 1099536-00-A | |
| 3 | RD | 0.35 | SN | X481-1 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 4 | BK | 0.35 | SN | X481-3 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 5 | SI | 0.35 | SN | X481-2 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 10 | BK/WH | 0.75 | SN | X522-4 | SUMITOMO 8230-4924 | | 1099536-00-A | |
| 11 | RD | 1 | SN | X523-2 | SUMITOMO 8230-4924 | | 1099536-00-A | |
| 13 | OR | 0.35 | SN | X059-6 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 14 | VT | 0.35 | SN | X059-4 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 15 | GY | 0.35 | SN | X059-2 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 16 | RD/WH | 0.35 | SN | X059-1 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 18 | BK | 1 | SN | X523-1 | SUMITOMO 8230-4924 | | 1099536-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.75 | SN | X522-1 | SUMITOMO 8230-4924 | | 1099536-00-A | |
| 3 | RD | 0.35 | SN | X481-1 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 4 | BK | 0.35 | SN | X481-3 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 5 | SI | 0.35 | SN | X481-2 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 10 | BK/WH | 0.75 | SN | X522-4 | SUMITOMO 8230-4924 | | 1099536-00-A | |
| 11 | RD | 1 | SN | X523-2 | SUMITOMO 8230-4924 | | 1099536-00-A | |
| 13 | OR | 0.35 | SN | X059-6 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 14 | VT | 0.35 | SN | X059-4 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 15 | GY | 0.35 | SN | X059-2 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 16 | RD/WH | 0.35 | SN | X059-1 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 18 | BK | 1 | SN | X523-1 | SUMITOMO 8230-4924 | | 1099536-00-A | |
