X192 - s-rhd-sop12

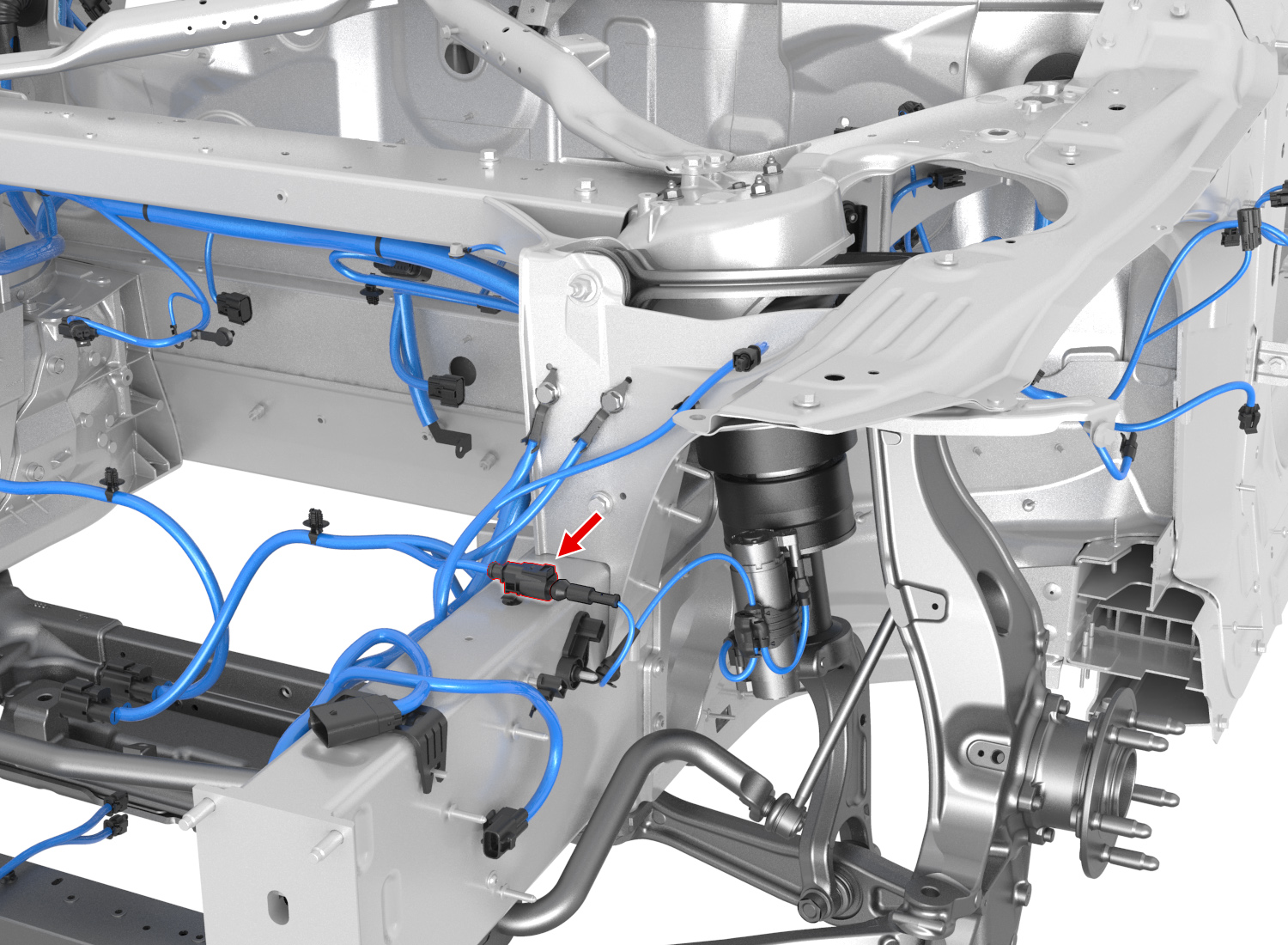

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 969028-2 | 1.6x0.6MS | GN | 0.35 | AMP | 964971-1 | X179 | 6 |
| 2 | AMP | 969028-2 | 1.6x0.6MS | BU | 0.35 | AMP | 964971-1 | X179 | 7 |
| 3 | AMP | 969028-2 | 1.6x0.6MS | VT | 0.35 | AMP | 964971-1 | X179 | 1 |
| 4 | AMP | 969028-2 | 1.6x0.6MS | BN | 0.35 | AMP | 964971-1 | X179 | 2 |
