X027 - s-rhd-sop13

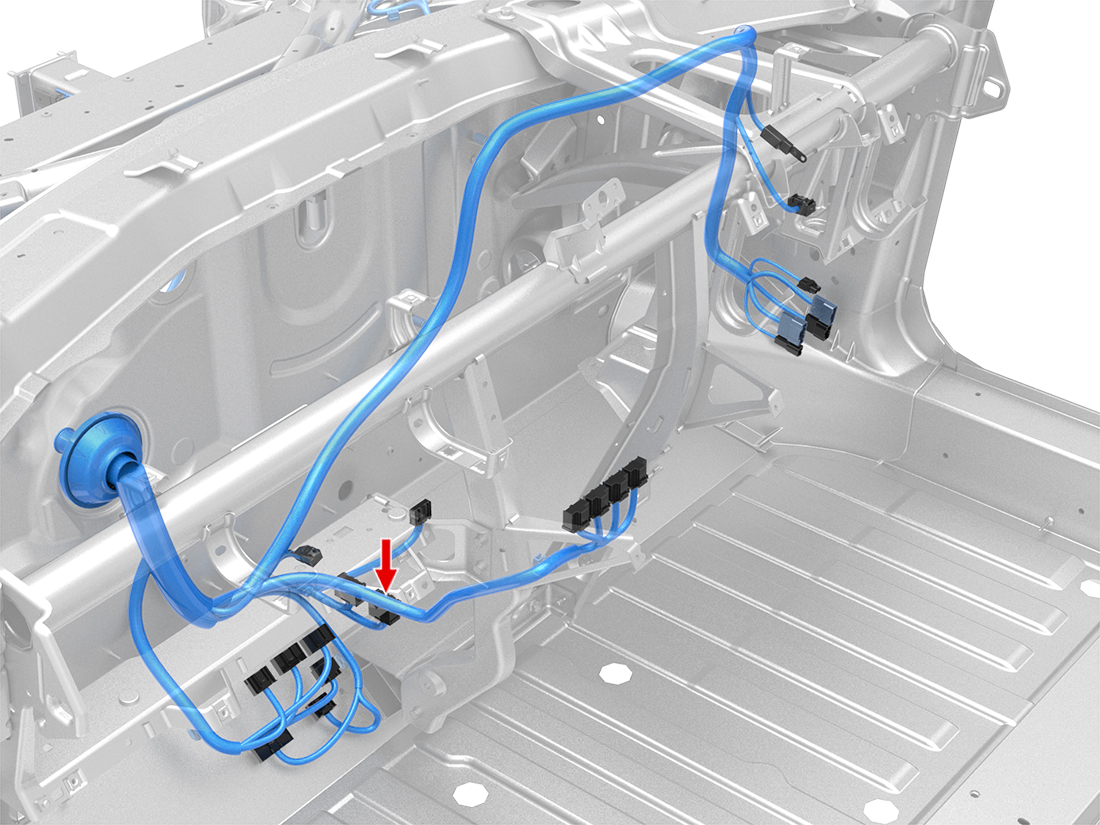

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-4121-02 | 6.3x0.8F | RD/GN | 2.00 | X563 | 38 | ||
| 2 | YAZAKI | 7116-4121-02 | 6.3x0.8F | BK | 2.00 | G520 | 1 | ||
| 3 | YAZAKI | 7116-4121-02 | 6.3x0.8F | BU/WH | 2.00 | X563 | 10 | ||
| 4 | YAZAKI | 7116-4121-02 | 6.3x0.8F | GY/WH | 1.50 | X563 | 19 | ||
| 5 | YAZAKI | 7116-4121-02 | 6.3x0.8F | RD/VT | 2.00 | X563 | 14 | ||
| 6 | YAZAKI | 7116-4120-02 | 6.3x0.8F | RD/WH | 1.00 | X562 | 6 |
