X034 - s-rhd-sop13

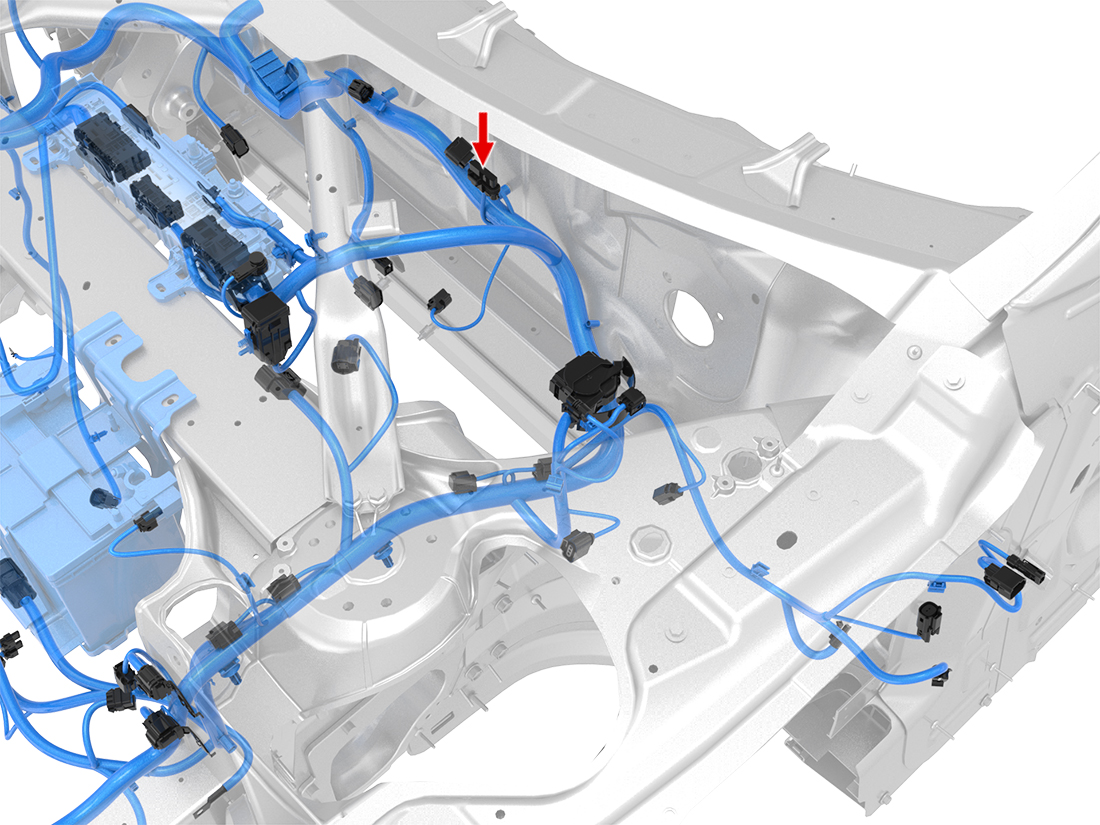

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| A | |||||||||
| B | DELPHI | 12077411 | 2.8x0.8FS | VT | 1.00 | DELPHI | 15324985 | X563 | 36 |
| C | DELPHI | 12077412 | 2.8x0.8FS | BK | 2.00 | DELPHI | 15324982 | G520 | 1 |
| D | DELPHI | 12077412 | 2.8x0.8FS | BN | 2.00 | DELPHI | 15324982 | X563 | 26 |
| E | DELPHI | 12077411 | 2.8x0.8FS | RD | 1.00 | DELPHI | 15324985 | X563 | 37 |
