X059 - s-rhd-sop13

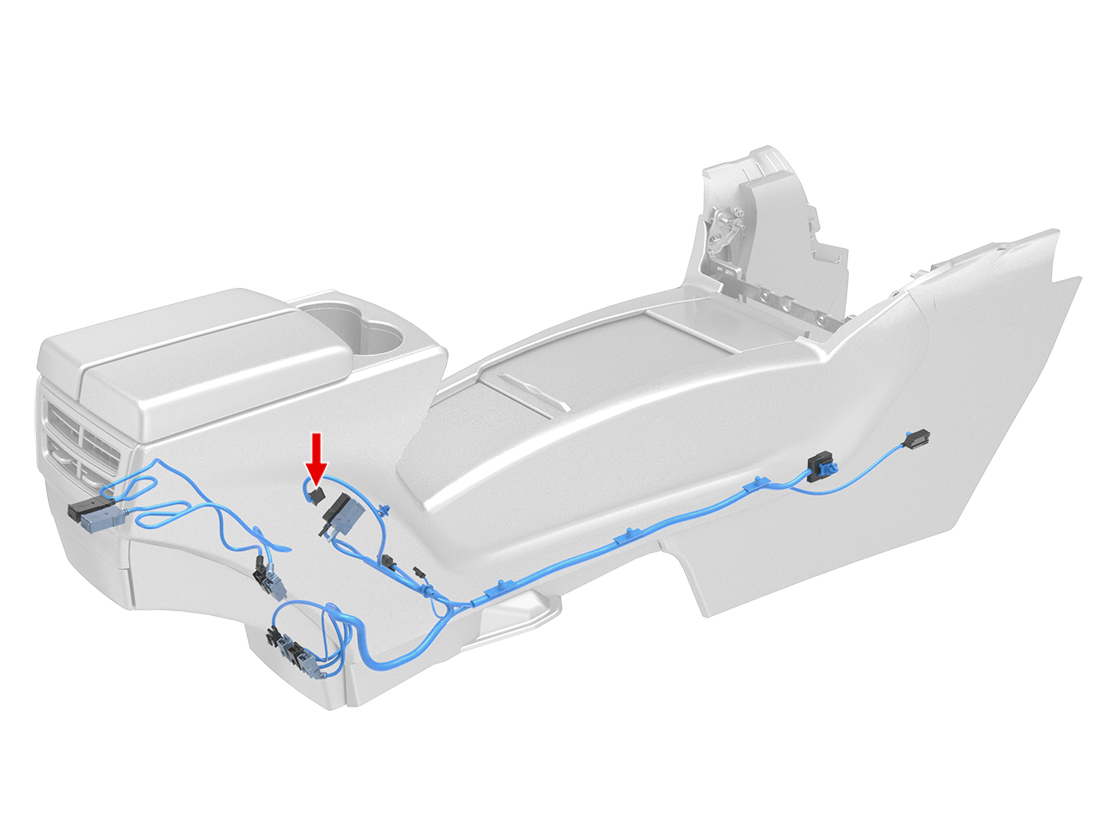

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | KET | 730913-3 | 0.8x0.64F | RD/WH | 0.35 | X982M | 16 | ||
| 2 | KET | 730913-3 | 0.8x0.64F | GY | 0.35 | X982M | 15 | ||
| 3 | |||||||||
| 4 | KET | 730913-3 | 0.8x0.64F | VT | 0.35 | X982M | 14 | ||
| 5 | |||||||||
| 6 | KET | 730913-3 | 0.8x0.64F | OR | 0.35 | X982M | 13 | ||
