X066 - s-rhd-sop13

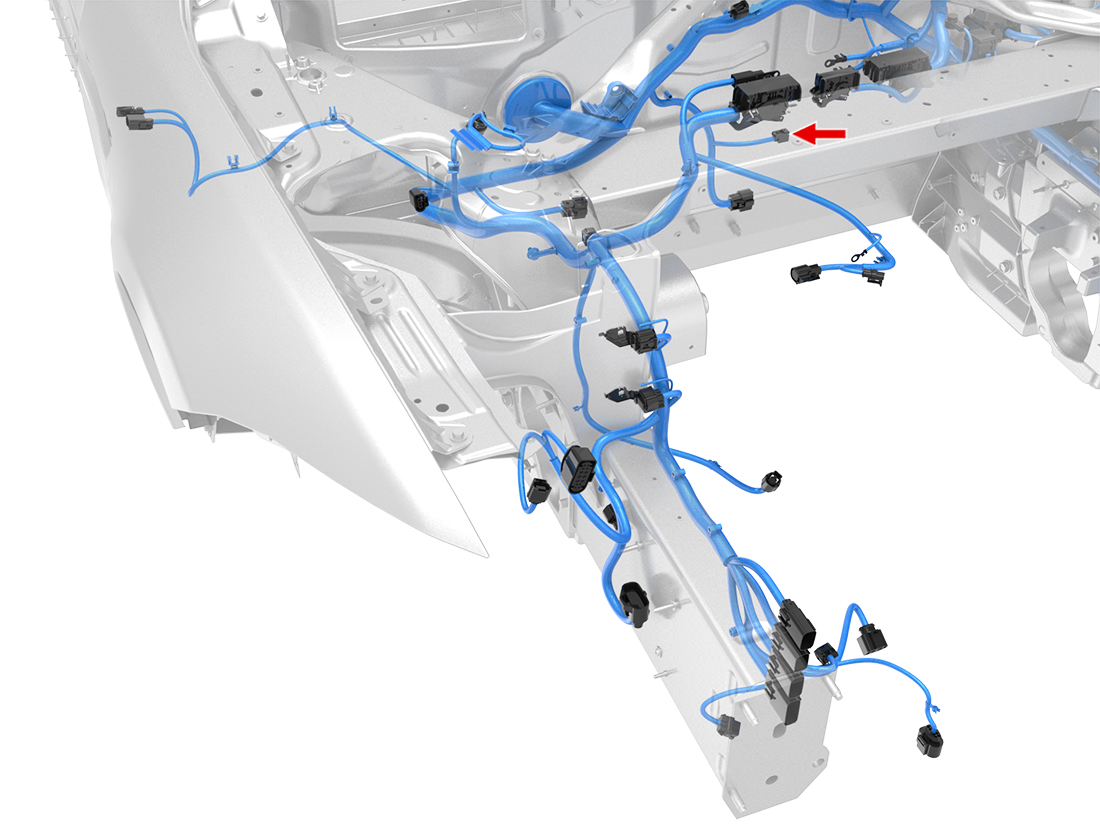

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-4721-02 | 0.64x0.64F | WH/BU | 0.50 | TESLA | MAT-140-220 | X053 | 6 |
| 2 | YAZAKI | 7116-4721-02 | 0.64x0.64F | GY/WH | 0.50 | TESLA | MAT-140-220 | X053 | 16 |
