X069 - s-rhd-sop13

Tesla Part Number
1015270-00-A
Connector
MOLEX 31403-2100
Color
BK

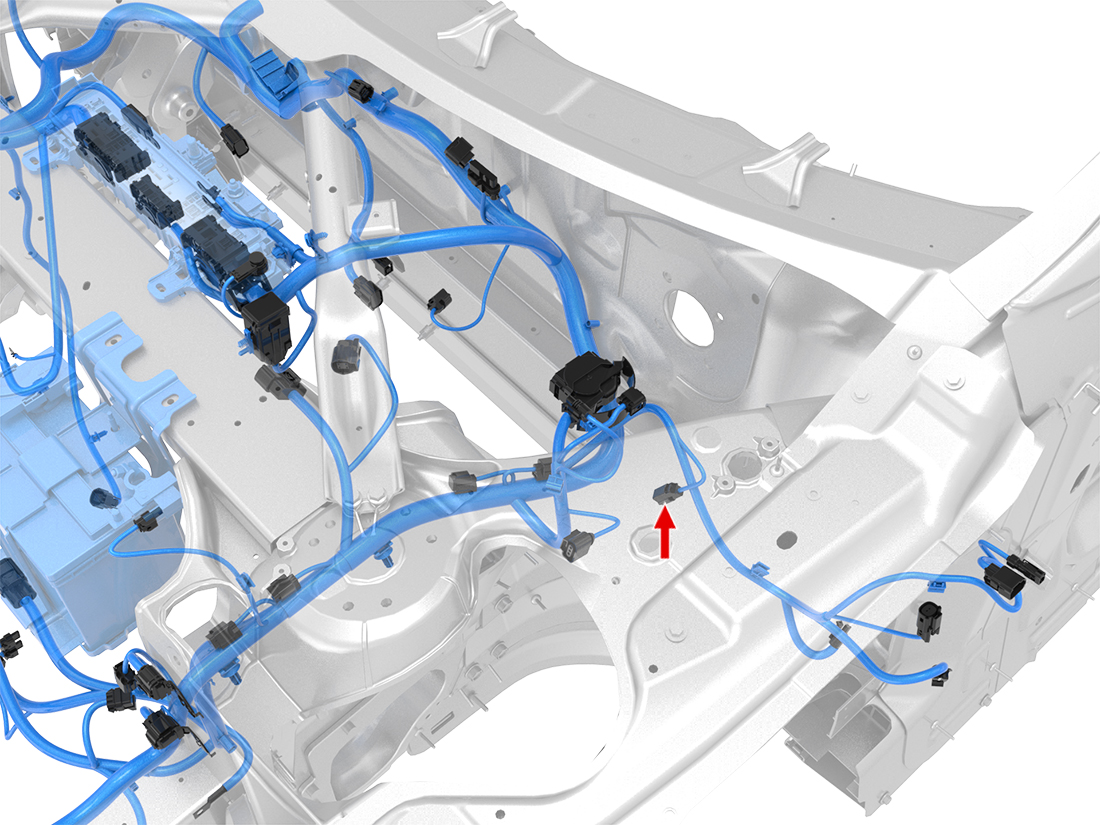

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1MOLEX33468-00220.64x0.64FYE/WH0.35TESLAMAT-120-206X0539
2MOLEX33468-00220.64x0.64FBN/WH0.35TESLAMAT-120-206X05319
