X1001 - s-rhd-sop13

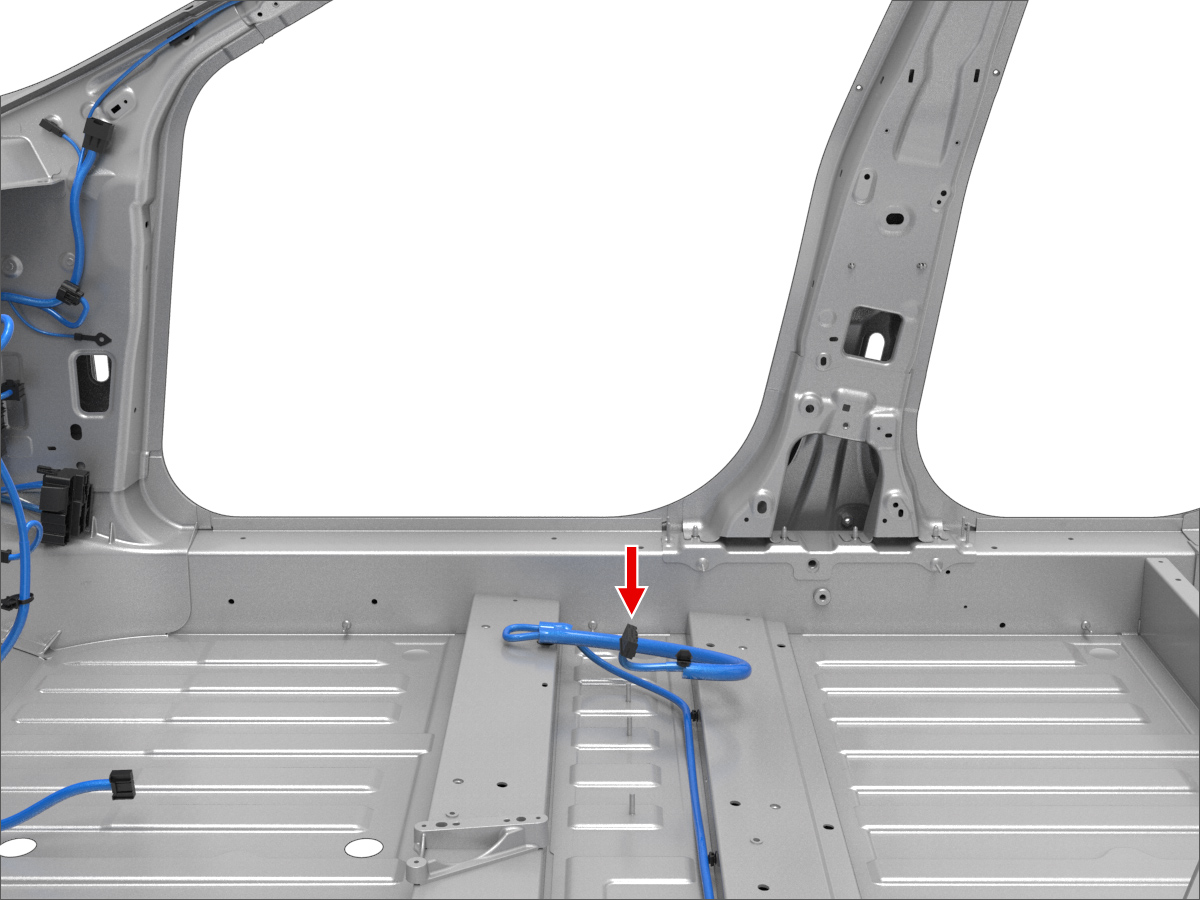

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 2109006-1 | 1.5x0.64F | BK/VT | 0.35 | X201 | 13 | ||
| 2 | AMP | 2109006-1 | 1.5x0.64F | BK/WH | 0.35 | X201 | 14 | ||
| 3 | |||||||||
| 4 | |||||||||
| 5 | |||||||||
| 6 | AMP | 1241404-1 | 6.3x0.8F | YE | 2.50 | X570 | 7 | ||
| 7 | AMP | 1241404-1 | 6.3x0.8F | BK | 2.50 | G720 | 1 | ||
| 8 | AMP | 2109006-1 | 1.5x0.64F | GN/WH | 0.35 | X778 | 8 | ||
| 9 | AMP | 2109006-1 | 1.5x0.64F | GN | 0.35 | X778 | 19 | ||
| 10 | |||||||||
| 11 | |||||||||
| 12 | |||||||||
| 13 | |||||||||
| 14 | |||||||||
| 15 | |||||||||
| 16 | |||||||||
