X102 - s-rhd-sop13

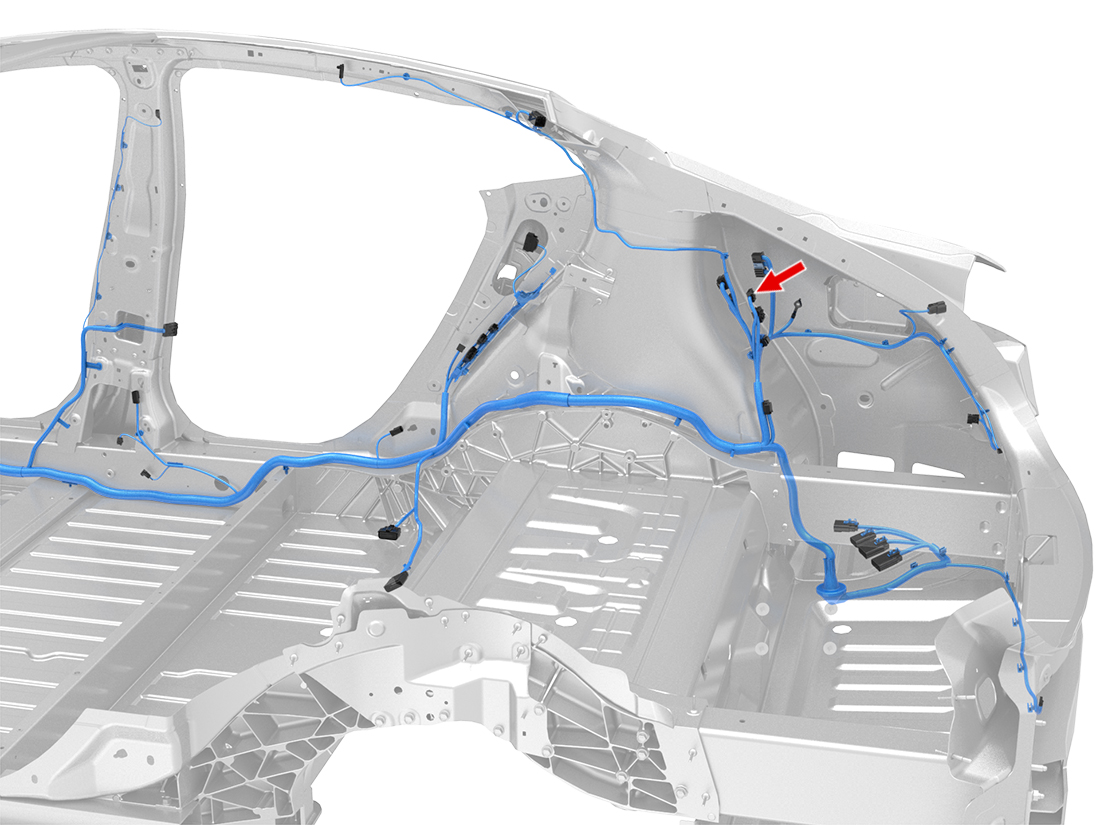

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | JAE | M34S75C4F1 | 0.8x0.64F | RD/WH | 0.35 | X779 | 4 | ||
| 2 | |||||||||
| 3 | JAE | M34S75C4F1 | 0.8x0.64F | GN/WH | 0.35 | X779 | 7 | ||
| 4 | |||||||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | |||||||||
| 8 | |||||||||
| 9 | |||||||||
| 10 | |||||||||
| 11 | JAE | M34S75C4F1 | 0.8x0.64F | RD | 0.35 | X779 | 15 | ||
| 12 | |||||||||
| 13 | JAE | M34S75C4F1 | 0.8x0.64F | GN | 0.35 | X779 | 18 | ||
| 14 | |||||||||
| 15 | |||||||||
| 16 | |||||||||
| 17 | |||||||||
| 18 | |||||||||
| 19 | |||||||||
| 20 | |||||||||
