X1021 - s-rhd-sop13

Tesla Part Number
1075477-00-B
Connector
DELPHI 13597381
Color
BN

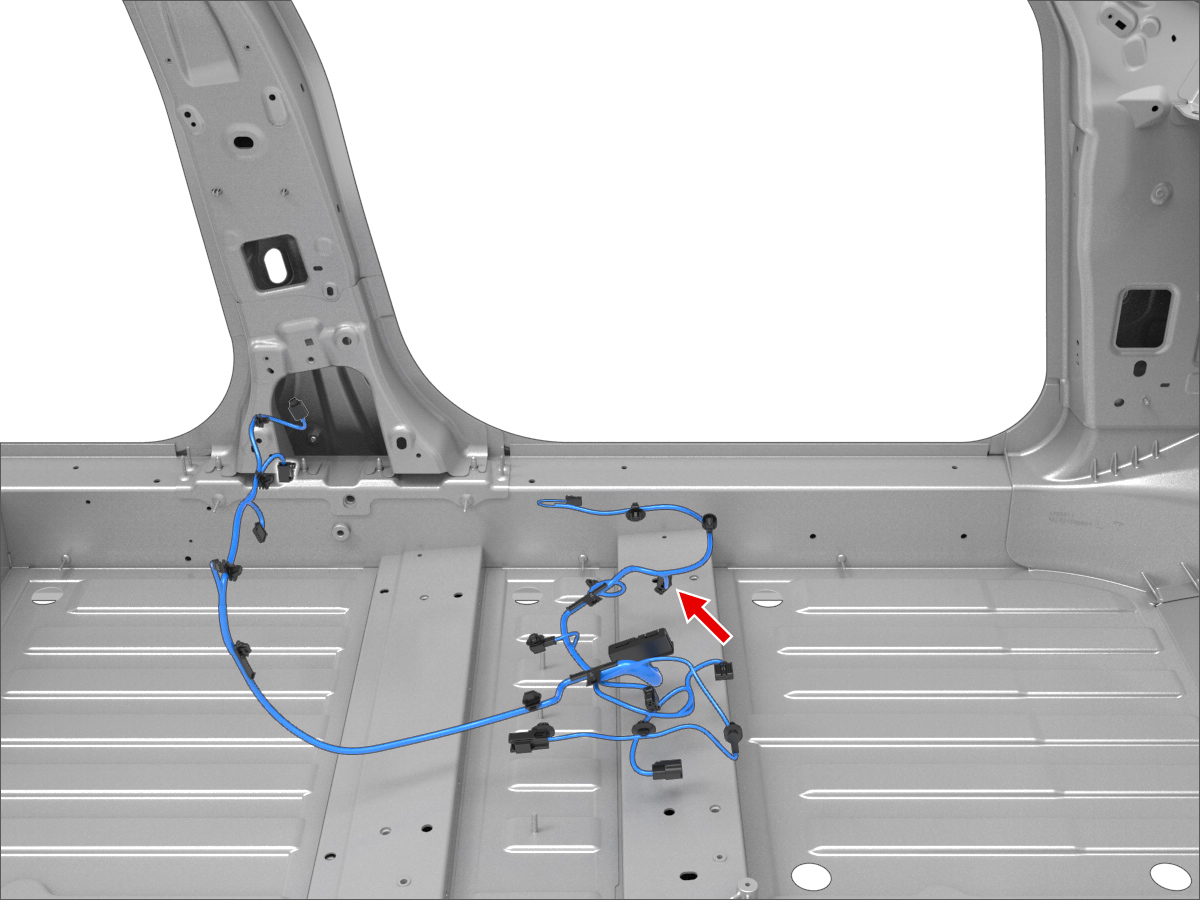

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP968074-22.8x0.6FYE0.75X100246
2AMP5-928999-10.63x0.63FBU0.35X10026
3AMP968074-22.8x0.6FVT0.75X100247
4AMP5-928999-10.63x0.63FOG0.35X10025
