X103 - s-rhd-sop13

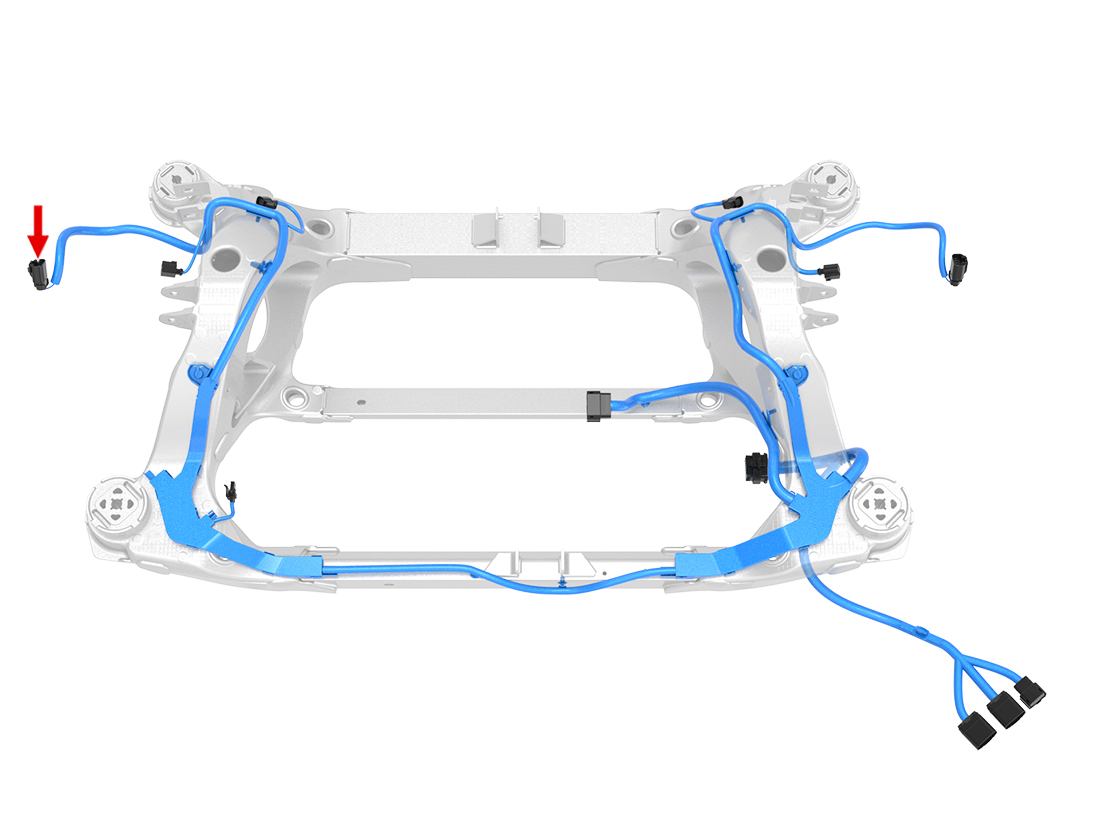

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | FCI | 54001400 | 2.8x0.8F | BK/WH | 2.00 | TESLA | MAT-170-409 | X930F | 8 |
| 2 | |||||||||
| 3 | |||||||||
| 4 | FCI | 54001400 | 2.8x0.8F | GY | 2.00 | TESLA | MAT-170-409 | X930F | 1 |
