X104A - s-rhd-sop13

Tesla Part Number
1078814-00-A
Connector
BOSCH 1928405521
Color
BK

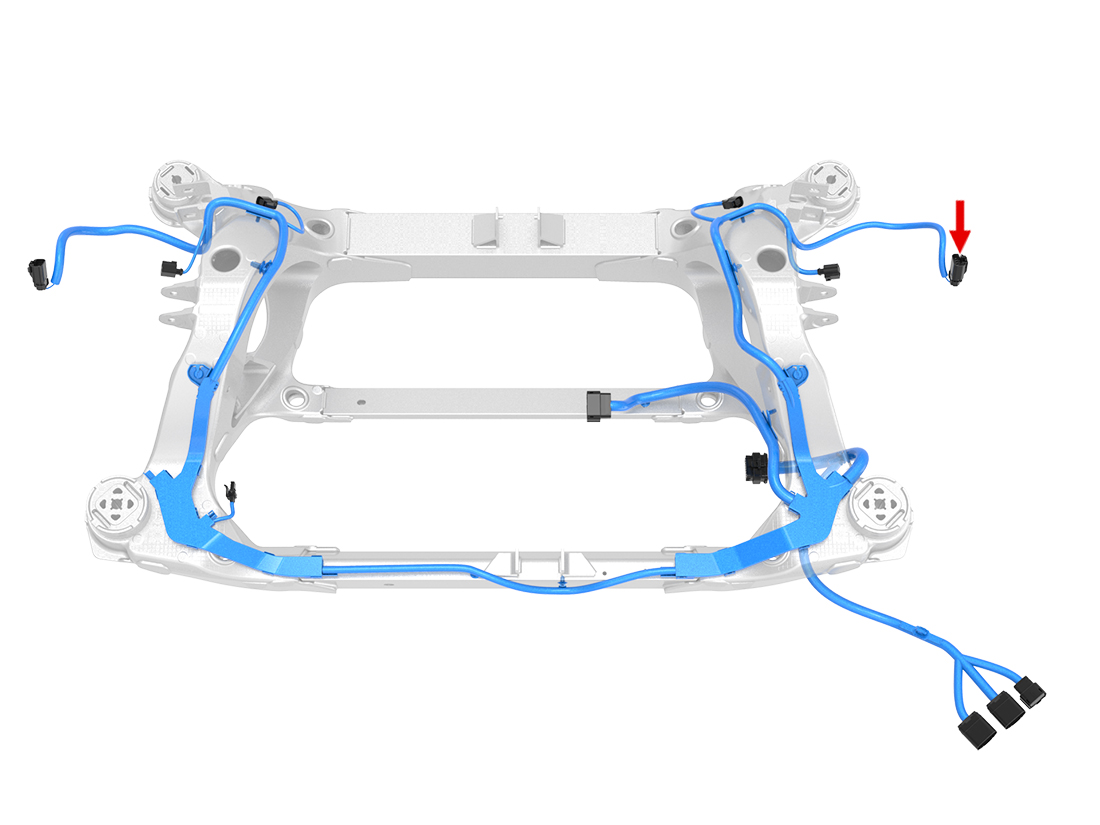

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1BOSCH19284980572.8x0.8FSRD/WH2.00BOSCH1928300600X930F7
2BOSCH19284980572.8x0.8FSRD/VT2.00BOSCH1928300600X930F14
