X107 - s-rhd-sop13

Tesla Part Number
1015403-00-A
Connector
YAZAKI 7183-4347
Color
WH

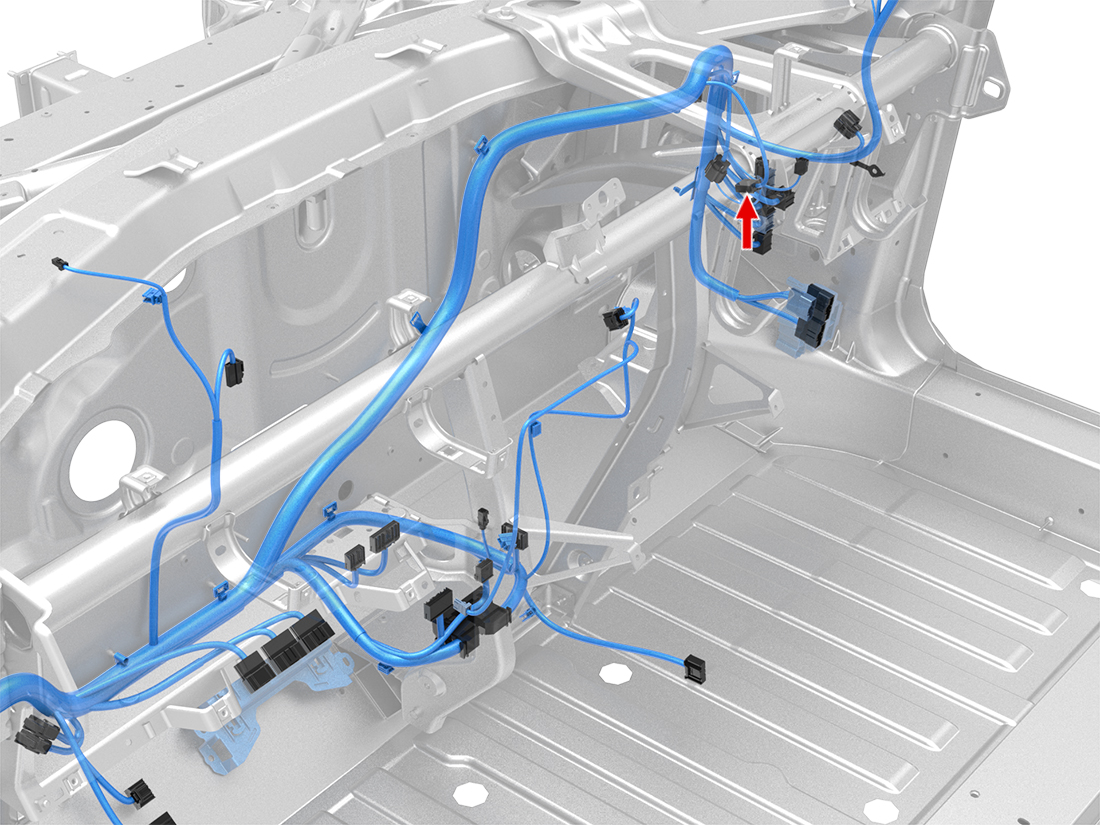

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1YAZAKI7116-4270-022.8x0.8FBN0.35X5793
2YAZAKI7116-4270-022.8x0.8FBN0.35X5792
3YAZAKI7116-4270-022.8x0.8FGN/WH0.50X987M7
4YAZAKI7116-4270-022.8x0.8FGN/RD0.35X5787
