X129B - s-rhd-sop13

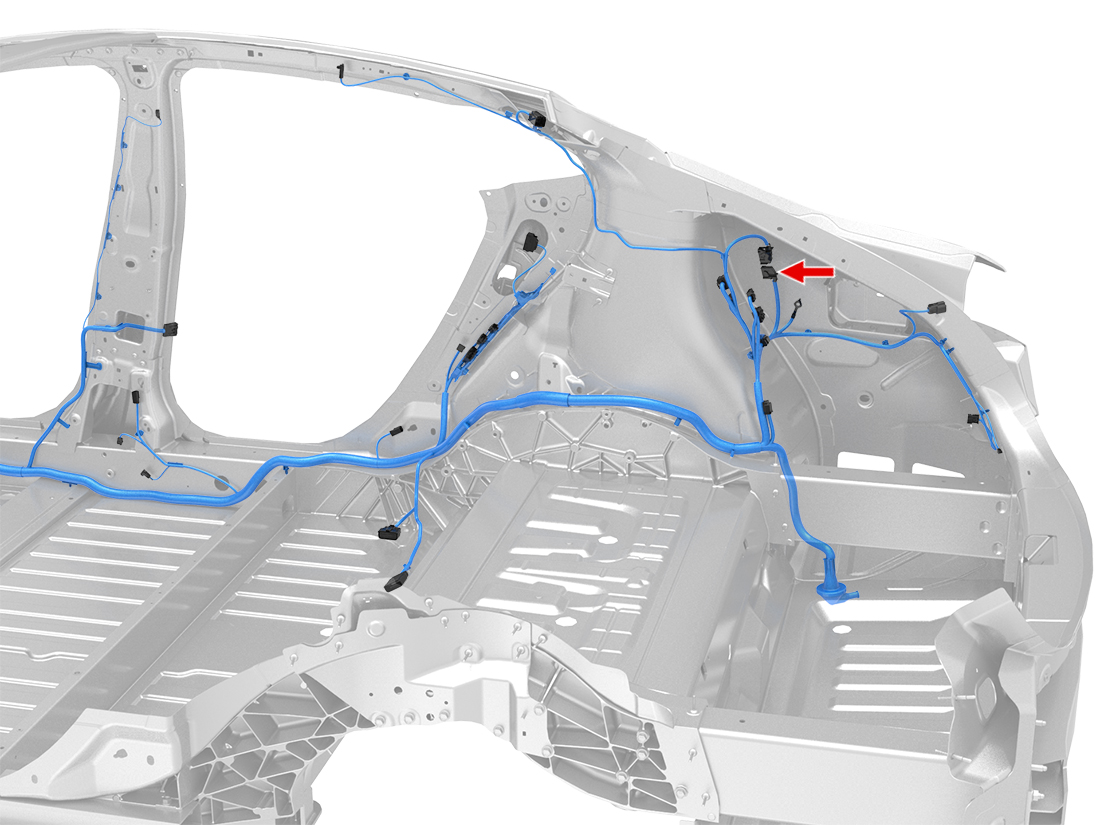

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-928999-1 | 0.63x0.63F | BN | 0.35 | X909M | 12 | ||
| 2 | AMP | 5-928999-1 | 0.63x0.63F | RD/YE | 0.35 | X977F | 22 | ||
| 3 | AMP | 5-928999-1 | 0.63x0.63F | WH | 0.35 | X977F | 11 | ||
| 4 | AMP | 5-928999-1 | 0.63x0.63F | OG/BK | 0.35 | X977F | 20 | ||
| 5 | AMP | 5-928999-1 | 0.63x0.63F | BU/WH | 0.35 | X909M | 11 | ||
| 6 | AMP | 5-963715-1 | 0.63x0.63F | GY | 0.50 | X970M | 10 | ||
| 7 | |||||||||
| 8 | |||||||||
| 9 | |||||||||
| 10 | AMP | 5-928999-1 | 0.63x0.63F | RD/VT | 0.35 | X977F | 9 | ||
| 11 | AMP | 5-928999-1 | 0.63x0.63F | RD/GN | 0.35 | X977F | 10 | ||
| 12 | AMP | 5-928999-1 | 0.63x0.63F | BN/WH | 0.35 | X977F | 19 | ||
| 13 | AMP | 5-928999-1 | 0.63x0.63F | BU/WH | 0.35 | X977F | 21 | ||
| 14 | AMP | 5-928999-1 | 0.63x0.63F | BN | 0.35 | X977F | 8 | ||
| 15 | AMP | 5-963715-1 | 0.63x0.63F | GY/WH | 0.50 | X970M | 4 | ||
| 16 | |||||||||
| 17 | |||||||||
| 18 | |||||||||
