X130B - s-rhd-sop13

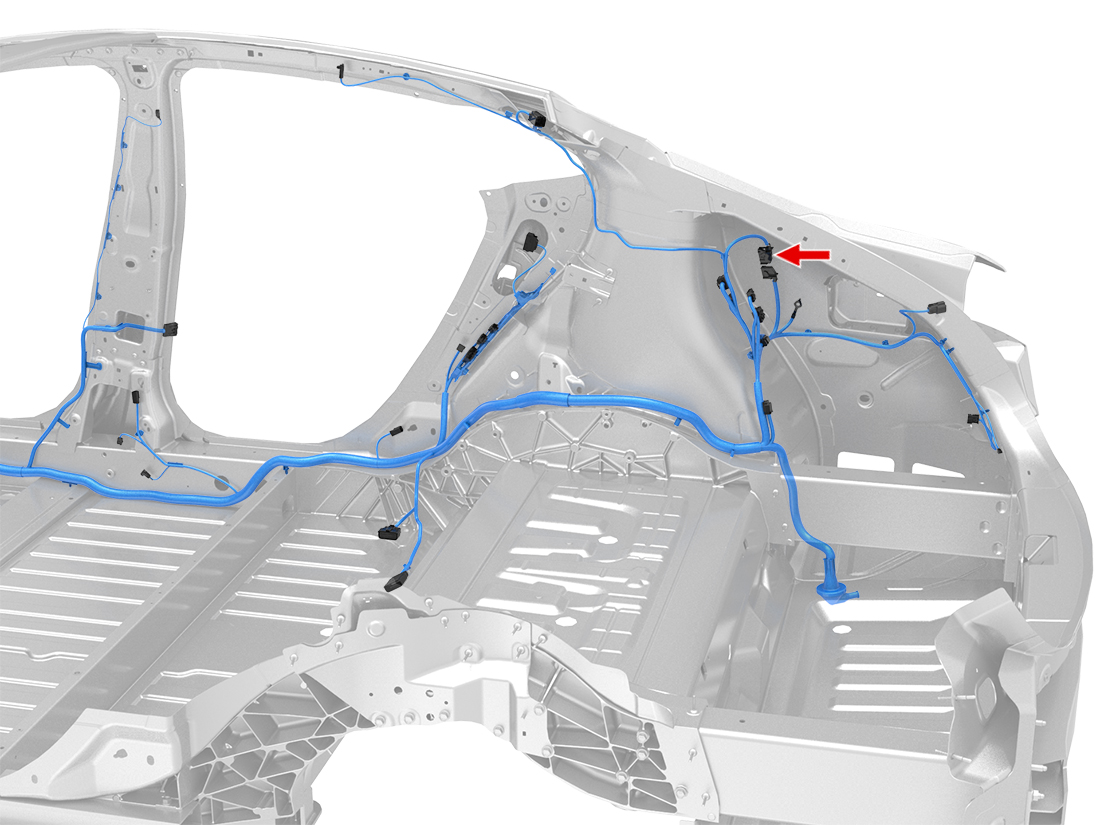

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | |||||||||
| 3 | |||||||||
| 4 | |||||||||
| 5 | |||||||||
| 6 | AMP | 5-928999-1 | 0.63x0.63F | YE/WH | 0.35 | X909M | 9 | ||
| 7 | AMP | 5-928999-1 | 0.63x0.63F | OG | 0.35 | X909M | 7 | ||
| 8 | |||||||||
| 9 | |||||||||
| 10 | |||||||||
| 11 | |||||||||
| 12 | |||||||||
| 13 | AMP | 5-963715-1 | 0.63x0.63F | BK | 0.50 | G700 | 1 | ||
| 14 | AMP | 5-963715-1 | 0.63x0.63F | RD/BU | 0.50 | X987F | 1 | ||
| 15 | |||||||||
| 16 | |||||||||
| 17 | |||||||||
| 18 | AMP | 5-928999-1 | 0.63x0.63F | GN/WH | 0.35 | X909M | 5 | ||
| 19 | |||||||||
| 20 | AMP | 5-928999-1 | 0.63x0.63F | WH | 0.35 | X909M | 8 | ||
| 21 | AMP | 5-928999-1 | 0.63x0.63F | RD/WH | 0.35 | X909M | 6 | ||
| 22 | AMP | 5-928999-1 | 0.63x0.63F | BK/WH | 0.35 | X909M | 10 | ||
| 23 | AMP | 5-928999-1 | 0.63x0.63F | GN | 0.35 | X779 | 21 | ||
| 24 | AMP | 5-928999-1 | 0.63x0.63F | GN/WH | 0.35 | X779 | 10 | ||
| 25 | |||||||||
| 26 | |||||||||
