X134A - s-rhd-sop13

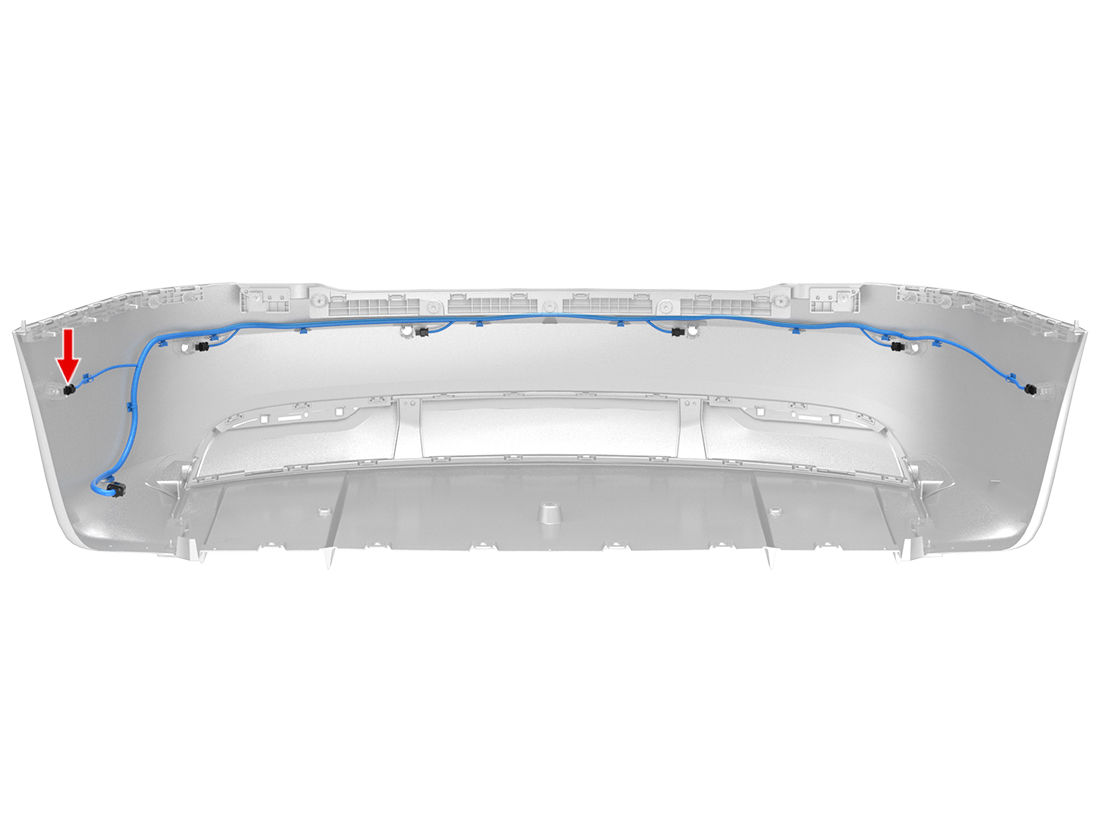

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452665-1 | 1.2x0.6FS | GN/WH | 0.35 | ||||
| 2 | AMP | 7-1452665-1 | 1.2x0.6FS | BU/WH | 0.35 | X909F | 11 | ||
| 3 | AMP | 7-1452665-1 | 1.2x0.6FS | BK/WH | 0.35 |
