X150 - s-rhd-sop13

Tesla Part Number

1039297-00-A

Connector

SUMITOMO 6098-4008

Color

WH

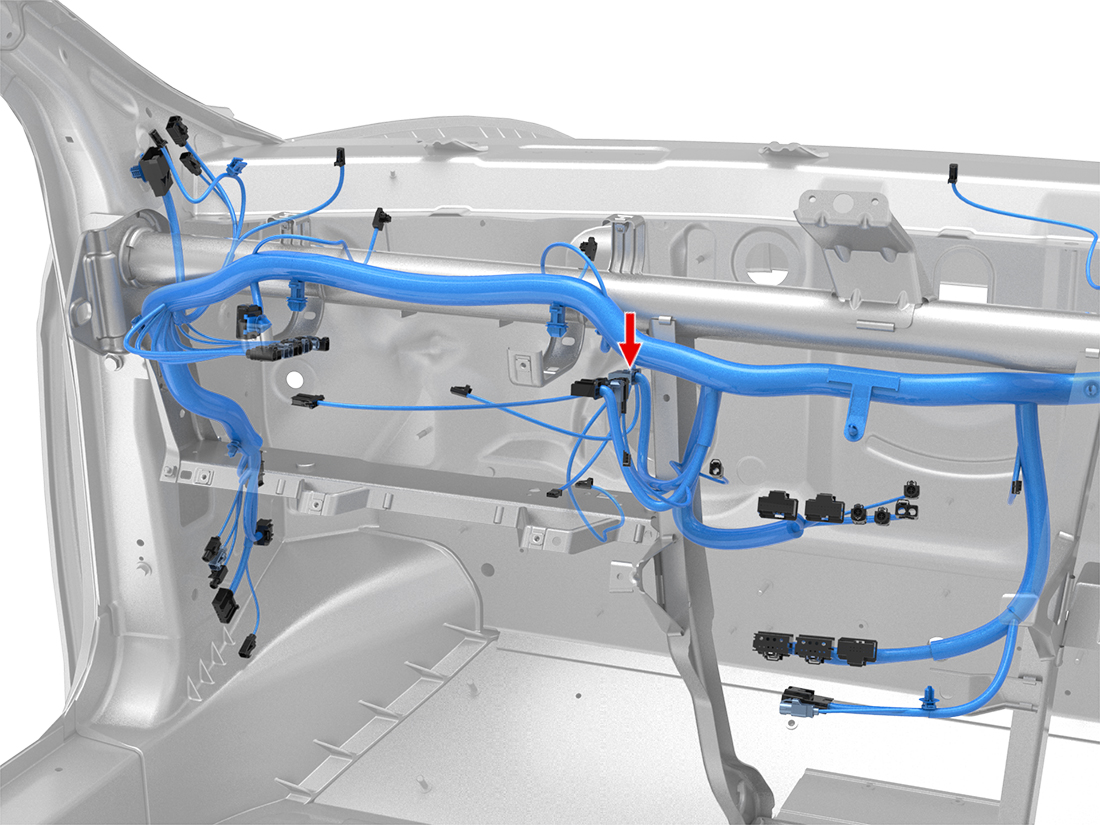

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.50			X970F	4
2	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X970F	10
3	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X949F	24
4	SUMITOMO	8100-3625	0.64x0.64F	RD/BU	0.50			X958F	2
5	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X958F	18
6	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X958F	17
7	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35			X958F	9
8	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X949F	25
9	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.35			X772	4
10	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X772	15
11	SUMITOMO	8100-3625	0.64x0.64F	RD/WH	0.35			X772	10
12	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X772	21
13
14
15	SUMITOMO	8100-3625	0.64x0.64F	BK	0.50
16	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.50			X968M	18
