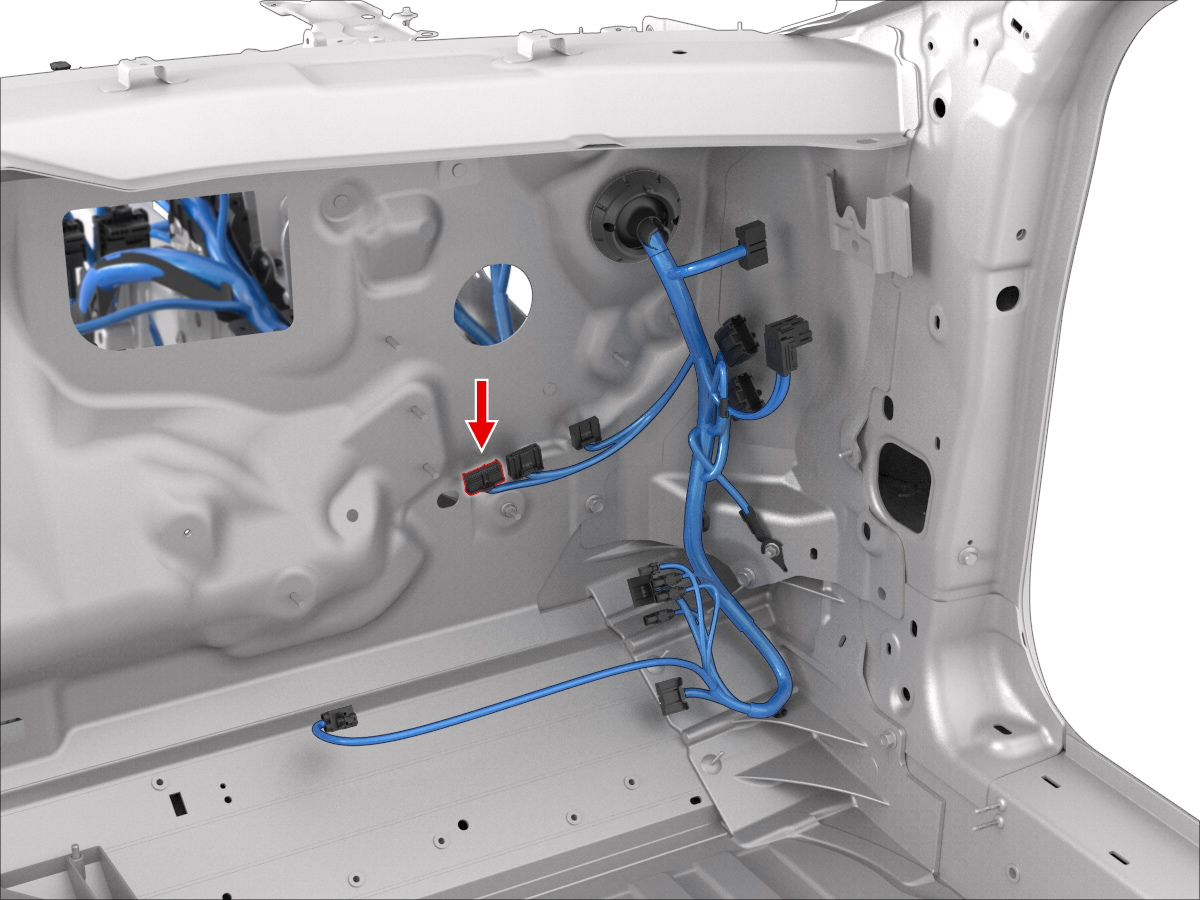

X176 - s-rhd-sop13

Tesla Part Number

1091274-00-A

Connector

AMP 2141576-1

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1
2	AMP	2-1703930-1	0.50x0.40F	RD/GN	0.35	X971M	2
3
4	AMP	2-1703930-1	0.50x0.40F	RD	0.35	X182	3
5
6
7
8
9
10	AMP	2-1703930-1	0.50x0.40F	BN	0.35	X971M	17
11
12	AMP	2-1703930-1	0.50x0.40F	GN/WH	0.35	X189	10
13	AMP	2-1703930-1	0.50x0.40F	RD/VT	0.35	X971M	16
14	AMP	2-1703930-1	0.50x0.40F	RD/WH	0.35	X183	3
15
16	AMP	2-1703930-1	0.50x0.40F	BK/GY	0.35	X189	7
17	AMP	2-1703930-1	0.50x0.40F	VT	0.35	X189	9
18	AMP	2-1703930-1	0.50x0.40F	WH	0.35	X183	2
19	AMP	2-1703930-1	0.50x0.40F	BK/WH	0.35	X183	1
20	AMP	2-1703930-1	0.50x0.40F	GY/WH	0.35	X971M	18
21	AMP	2-1703930-1	0.50x0.40F	YE/WH	0.35
22	AMP	2-1703930-1	0.50x0.40F	YE	0.35
23	AMP	2-1703930-1	0.50x0.40F	GN/WH	0.35	X777	1
24	AMP	2-1703930-1	0.50x0.40F	GN	0.35	X777	12
25
26
27	AMP	2-1703930-1	0.50x0.40F	GY	0.35	X182	2
28	AMP	2-1703930-1	0.50x0.40F	BK/GY	0.35	X182	1
29	AMP	2-1703930-1	0.50x0.40F	BK	0.35	X971M	4
30	AMP	2-1703930-1	0.50x0.40F	VT	0.35	X971M	3
31
32
