X185 - s-rhd-sop13

Tesla Part Number
1045248-00-A
Connector
FEP 42511400
Color
BK

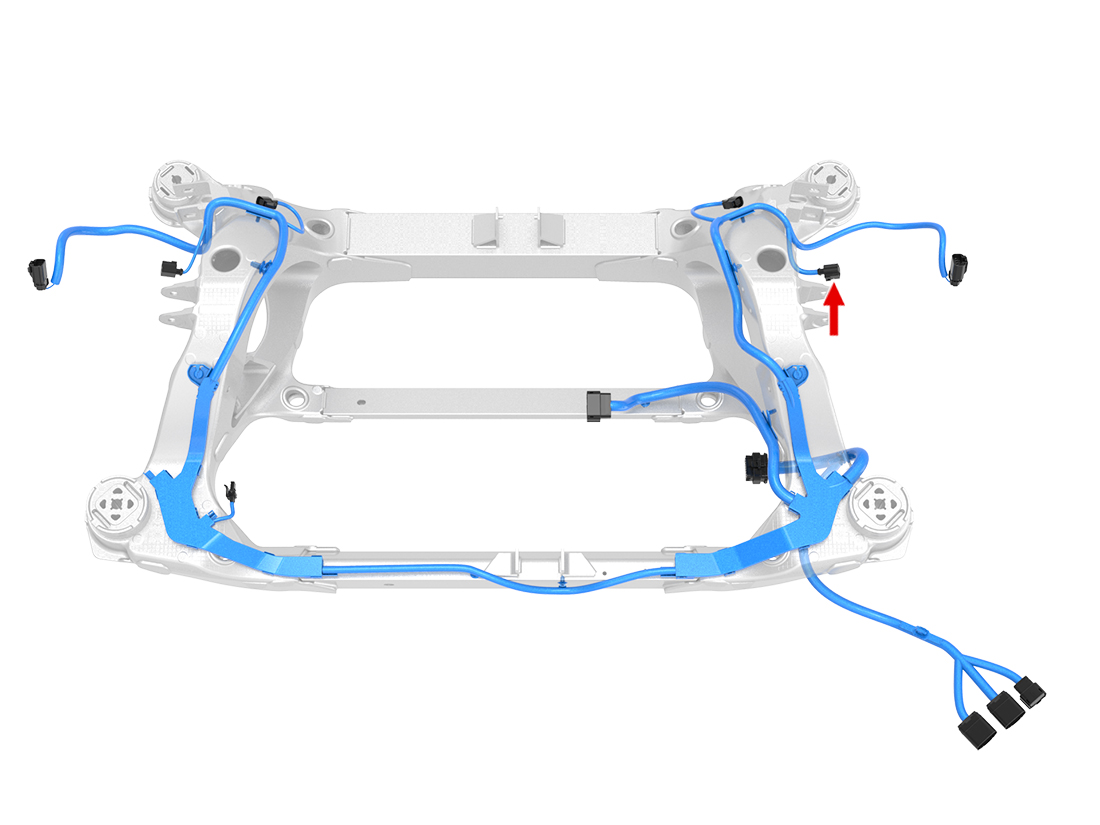

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP1564324-21.5x0.6FSGY/WH0.35X932F14
2AMP1564324-21.5x0.6FSBN0.35X932F13
3AMP1564324-21.5x0.6FSRD/VT0.35X932F12
