X189 - s-rhd-sop13

Tesla Part Number
1015192-00-A
Connector
FEP 42122600
Color
BK

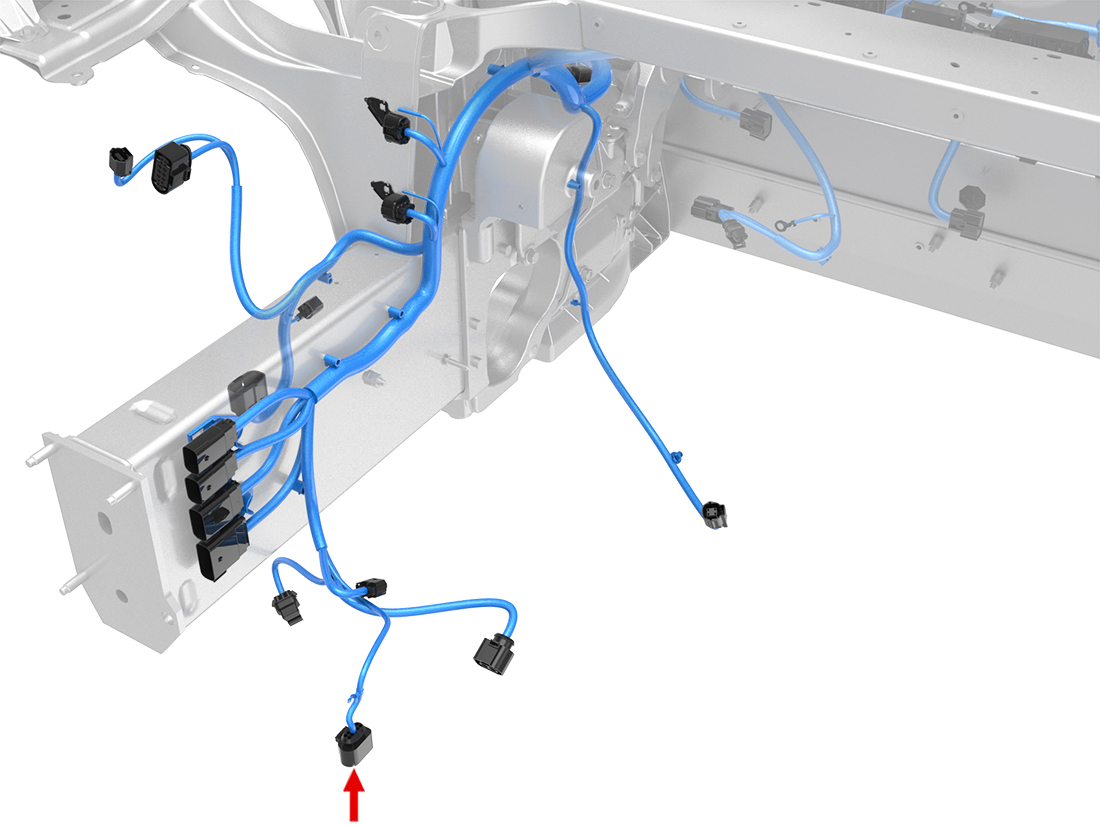

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP969005-21.6x0.6FSRD0.35X17718
2AMP969005-21.6x0.6FSWH0.35X181A9
3AMP969005-21.6x0.6FSGN0.35X17717
4AMP969005-21.6x0.6FSYE0.35X17720
5AMP969005-21.6x0.6FSGY0.35X1776
6AMP969005-21.6x0.6FSGY/WH0.35X181A11
7AMP969005-21.6x0.6FSBK/GY0.35X17616
8AMP969005-21.6x0.6FSBU0.35X17719
9AMP969005-21.6x0.6FSVT0.35X17617
10AMP969005-21.6x0.6FSGN/WH0.35X180A8
