X250 - s-rhd-sop13

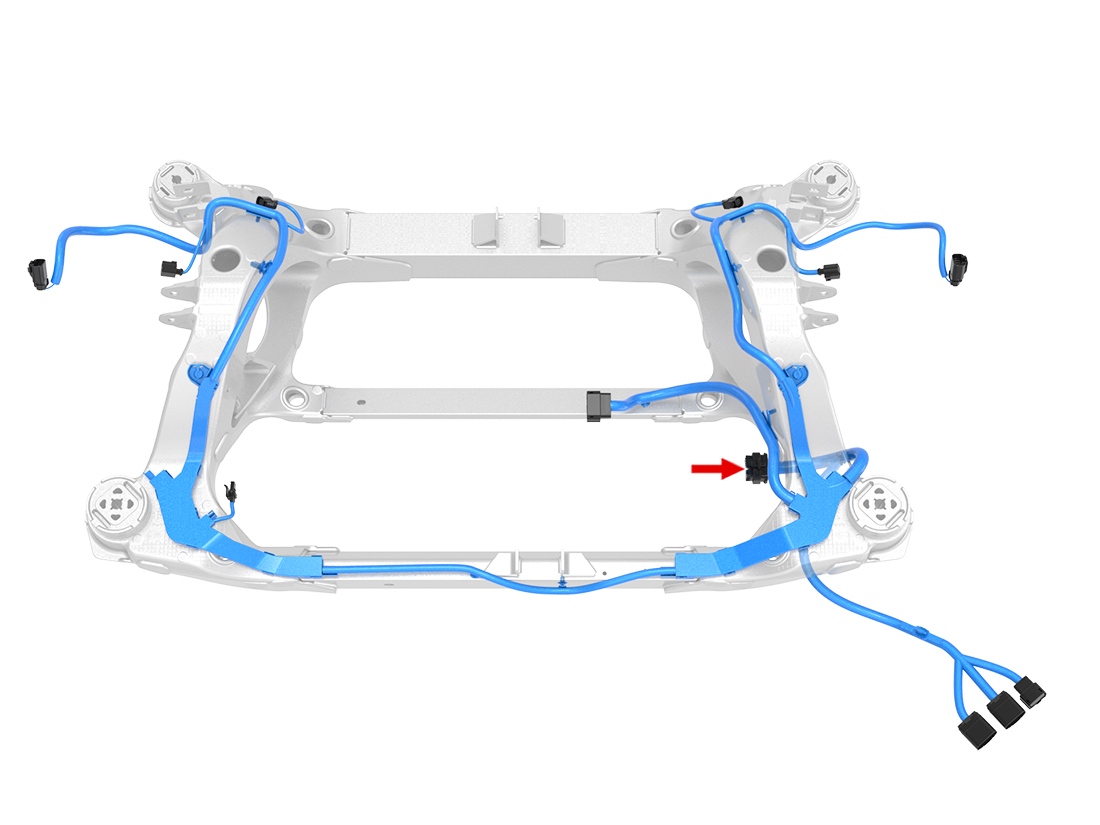

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 770520-3 | 1.3DF | RD/BK | 0.75 | TESLA | MAT-170-270 | X931F | 1 |
| 2 | AMP | 770520-3 | 1.3DF | WH | 0.75 | TESLA | MAT-170-270 | X931F | 13 |
| 3 | AMP | 770520-3 | 1.3DF | GN/WH | 0.75 | TESLA | MAT-170-270 | X931F | 12 |
| 4 | AMP | 770520-3 | 1.3DF | RD/WH | 0.75 | TESLA | MAT-170-270 | X932F | 1 |
| 5 | AMP | 770520-3 | 1.3DF | RD | 0.75 | TESLA | MAT-170-270 | X932F | 11 |
| 6 | AMP | 770520-3 | 1.3DF | VT/WH | 0.75 | TESLA | MAT-170-270 | X931F | 14 |
| 7 | AMP | 770520-3 | 1.3DF | RD/YE | 0.75 | TESLA | MAT-170-270 | X931F | 5 |
| 8 | AMP | 770520-3 | 1.3DF | YE | 0.75 | TESLA | MAT-170-270 | X931F | 6 |
| 9 | AMP | 770520-3 | 1.3DF | RD/VT | 0.75 | TESLA | MAT-170-270 | X253 | 4 |
| 10 | AMP | 770520-3 | 1.3DF | RD/GY | 0.75 | TESLA | MAT-170-270 | X253 | 3 |
| 11 | AMP | 770520-3 | 1.3DF | BK | 0.75 | TESLA | MAT-170-270 | X931F | 7 |
| 12 | AMP | 770520-3 | 1.3DF | OG | 0.75 | TESLA | MAT-170-270 | X931F | 2 |
| 13 | AMP | 770520-3 | 1.3DF | GY | 0.75 | TESLA | MAT-170-270 | X931F | 3 |
| 14 | AMP | 770520-3 | 1.3DF | BU | 0.75 | TESLA | MAT-170-270 | X931F | 10 |
| 15 | AMP | 770520-3 | 1.3DF | GN | 0.75 | TESLA | MAT-170-270 | X931F | 4 |
| 16 | AMP | 770520-3 | 1.3DF | GN | 0.75 | TESLA | MAT-170-270 | X253 | 2 |
| 17 | AMP | 770520-3 | 1.3DF | BK | 0.75 | TESLA | MAT-170-270 | X253 | 1 |
| 18 | AMP | 770520-3 | 1.3DF | WH | 0.75 | TESLA | MAT-170-270 | ||
| 19 | |||||||||
| 20 | |||||||||
| 21 | AMP | 770520-3 | 1.3DF | BU/WH | 0.75 | TESLA | MAT-170-270 | X931F | 9 |
| 22 | AMP | 770520-3 | 1.3DF | BK/VT | 0.75 | TESLA | MAT-170-270 | X931F | 11 |
| 23 | AMP | 770520-3 | 1.3DF | RD/BU | 0.75 | TESLA | MAT-170-270 | X931F | 8 |
