X269 - s-rhd-sop13

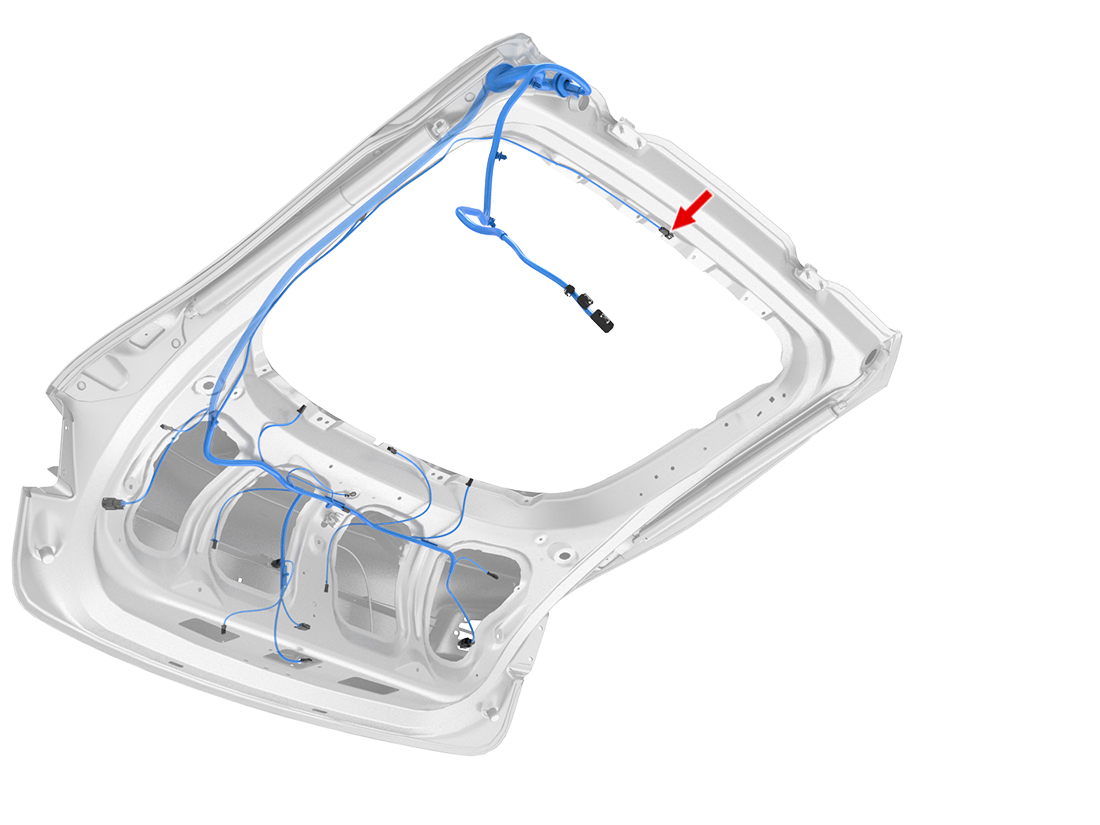

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| A | DELPHI | 12059894 | 1.5x0.8M | WH/BK | 0.50 | X921F | 11 | ||
| B | DELPHI | 12059894 | 1.5x0.8M | BK | 0.50 |
