X302 - s-rhd-sop13

Tesla Part Number

1015221-00-A

Connector

JAE MX34028SF1

Color

GY

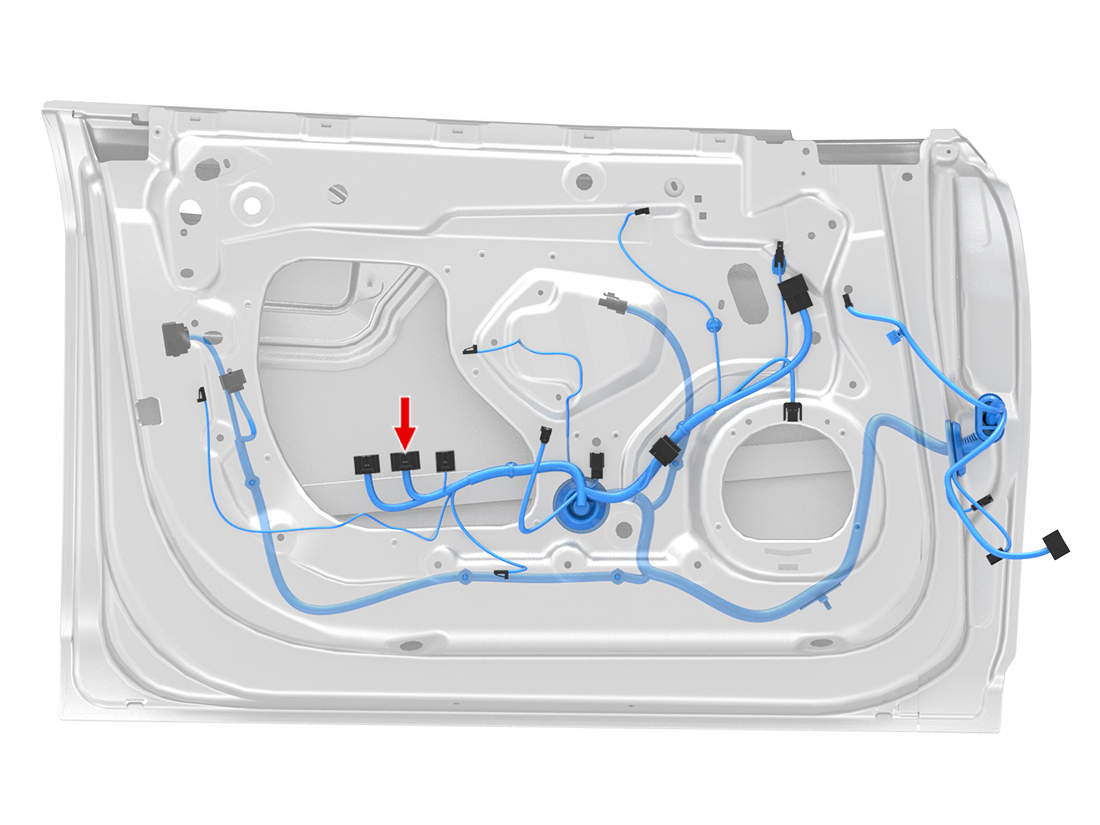

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2	JAE	M34S75C4F1	0.8x0.64F	OG	0.35			X928F	3
3	JAE	M34S75C4F1	0.8x0.64F	GN	0.35
4	JAE	M34S75C4F1	0.8x0.64F	RD/GY	0.35			X316	1
5	JAE	M34S75C4F1	0.8x0.64F	RD/VT	0.35			X316	7
6	JAE	M34S75C4F1	0.8x0.64F	RD/GN	0.35			X316	8
7
8	JAE	M34S75C4F1	0.8x0.64F	RD/BK	0.35			X316	5
9
10
11
12
13
14	JAE	M34S75C4F1	0.8x0.64F	RD	0.35			X488	1
15	JAE	M34S75C4F1	0.8x0.64F	BN	0.35			X943F	15
16	JAE	M34S75C4F1	0.8x0.64F	BN/WH	0.35			X943F	6
17
18	JAE	M34S75C4F1	0.8x0.64F	GY	0.35			X316	11
19	JAE	M34S75C4F1	0.8x0.64F	YE/WH	0.35			X316	17
20
21	JAE	M34S75C4F1	0.8x0.64F	WH/BK	0.35			X316	18
22	JAE	M34S75C4F1	0.8x0.64F	BK	0.35			X943F	13
23	JAE	M34S75C4F1	0.8x0.64F	GY/WH	0.35			X928F	7
24
25
26
27	JAE	M34S75C4F1	0.8x0.64F	SI	0.35
28	JAE	M34S75C4F1	0.8x0.64F	BK	0.35			X488	3
