X311 - s-rhd-sop13

Tesla Part Number
1015081-00-B
Connector
AMP 2-929170-4
Color
WH

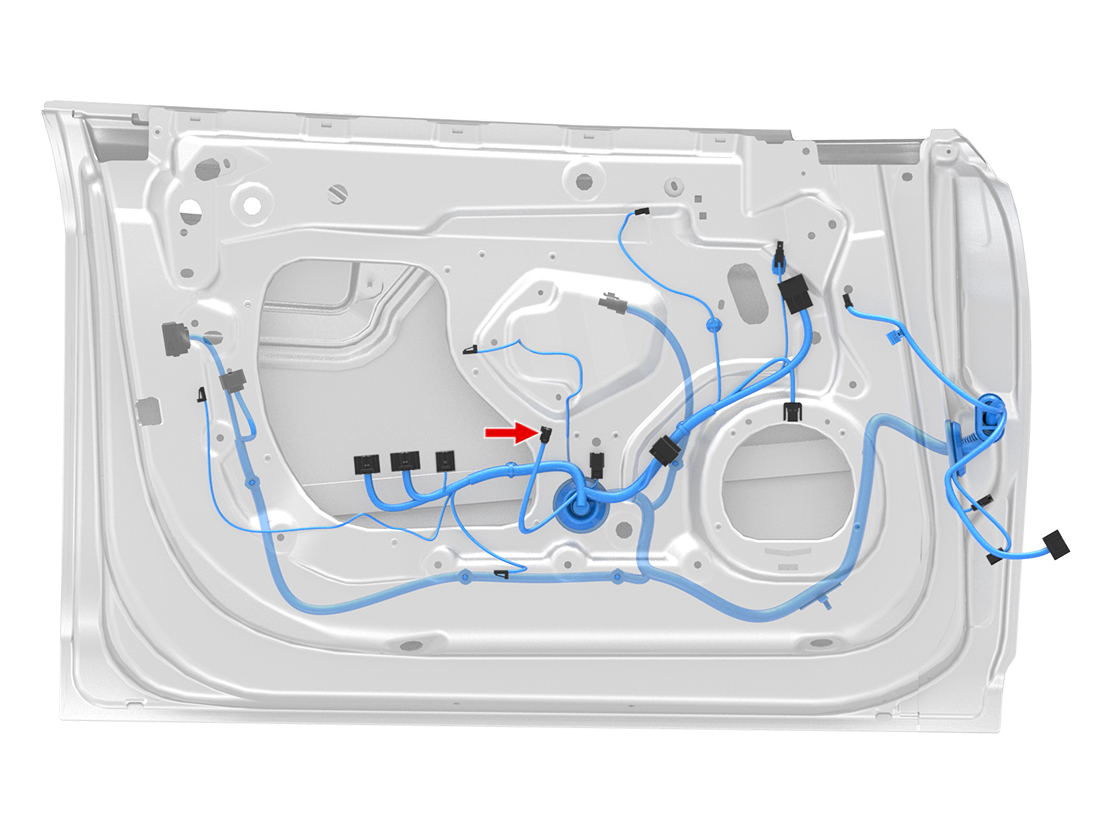

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP5-963715-10.63x0.63FWH/RD0.50X3156
2AMP5-928999-10.63x0.63FBK0.35
3AMP5-928999-10.63x0.63FGY0.35
4AMP5-963715-10.63x0.63FBU0.50X3151
