X312 - s-rhd-sop13

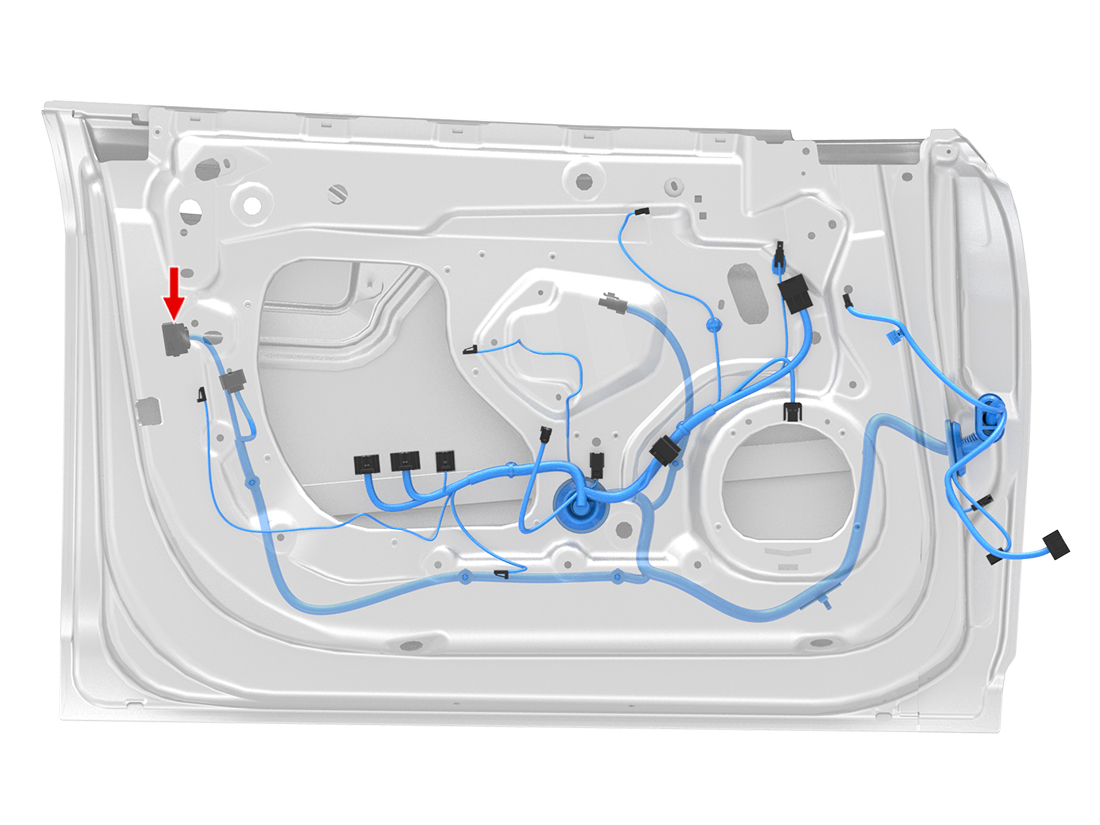

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | |||||||||
| 3 | AMP | 969005-3 | 1.6x0.6FS | GY | 0.35 | X301 | 1 | ||
| 4 | AMP | 969005-3 | 1.6x0.6FS | BK | 0.35 | X301 | 21 | ||
| 5 | |||||||||
| 6 | AMP | 969005-3 | 1.6x0.6FS | OG | 0.35 | ||||
| 7 | AMP | 969005-3 | 1.6x0.6FS | GY/WH | 0.35 | X301 | 5 | ||
| 8 | AMP | 969005-3 | 1.6x0.6FS | BK | 0.35 | ||||
| 9 | |||||||||
| 10 | |||||||||
