X316 - s-rhd-sop13

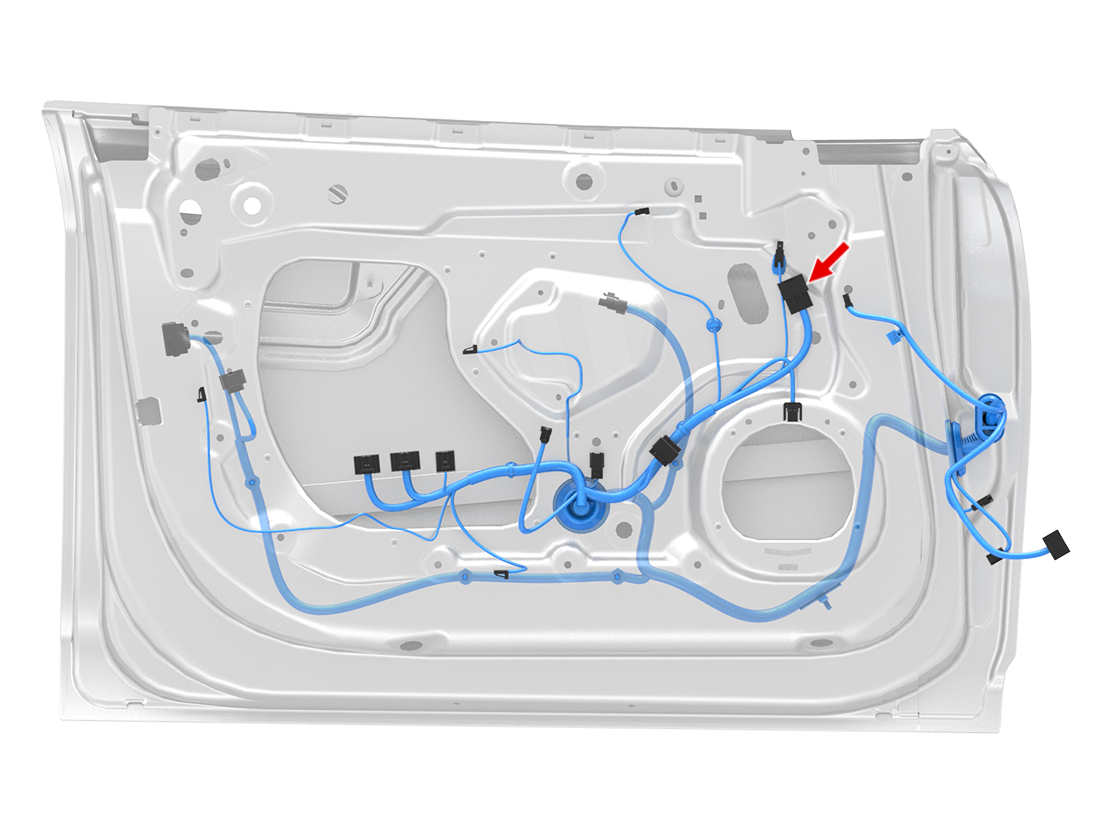

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7114-4720-02 | 0.64x0.64M | RD/GY | 0.35 | X302 | 4 | ||
| 2 | YAZAKI | 7114-4720-02 | 0.64x0.64M | RD/YE | 0.35 | X301 | 10 | ||
| 3 | YAZAKI | 7114-4720-02 | 0.64x0.64M | BU | 0.35 | X301 | 23 | ||
| 4 | |||||||||
| 5 | YAZAKI | 7114-4720-02 | 0.64x0.64M | RD/BK | 0.35 | X302 | 8 | ||
| 6 | YAZAKI | 7114-4720-02 | 0.64x0.64M | OG | 0.35 | X943F | 8 | ||
| 7 | YAZAKI | 7114-4720-02 | 0.64x0.64M | RD/VT | 0.35 | X302 | 5 | ||
| 8 | YAZAKI | 7114-4720-02 | 0.64x0.64M | RD/GN | 0.35 | X302 | 6 | ||
| 9 | |||||||||
| 10 | YAZAKI | 7114-4720-02 | 0.64x0.64M | BN | 0.35 | X301 | 12 | ||
| 11 | YAZAKI | 7114-4720-02 | 0.64x0.64M | GY | 0.35 | X302 | 18 | ||
| 12 | YAZAKI | 7114-4720-02 | 0.64x0.64M | WH/BU | 0.35 | X301 | 11 | ||
| 13 | |||||||||
| 14 | |||||||||
| 15 | YAZAKI | 7114-4720-02 | 0.64x0.64M | BK | 0.35 | ||||
| 16 | YAZAKI | 7114-4720-02 | 0.64x0.64M | GN | 0.35 | X943F | 16 | ||
| 17 | YAZAKI | 7114-4720-02 | 0.64x0.64M | YE/WH | 0.35 | X302 | 19 | ||
| 18 | YAZAKI | 7114-4720-02 | 0.64x0.64M | WH/BK | 0.35 | X302 | 21 | ||
| 19 | |||||||||
| 20 | YAZAKI | 7114-4720-02 | 0.64x0.64M | GN | 0.35 | X301 | 24 | ||
