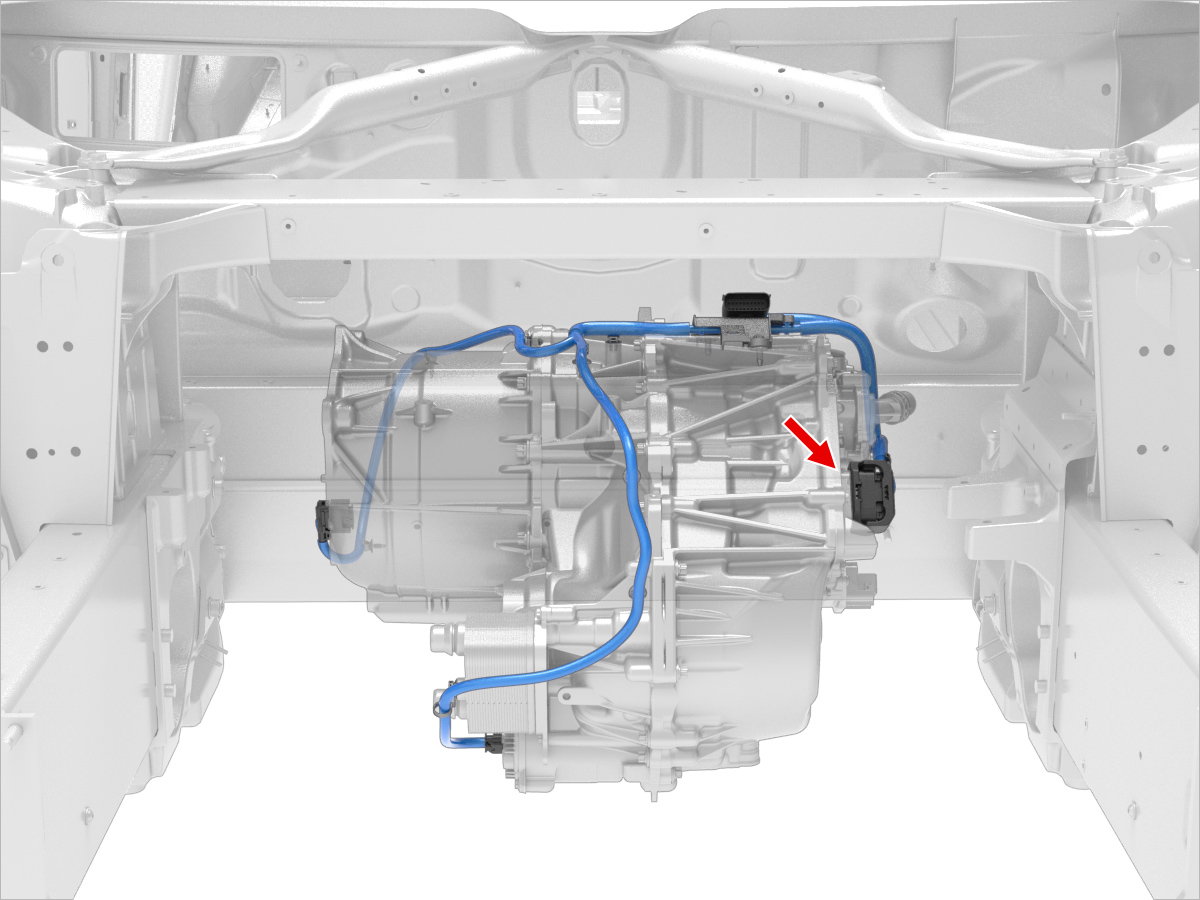

X325 - s-rhd-sop13

Tesla Part Number

1077101-00-A

Connector

SUMITOMO 6189-6987

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3456	0.64x0.64FS	OG	0.35	SUMITOMO	7165-1312	X995M	9
2	SUMITOMO	8100-3456	0.64x0.64FS	RD	0.35	SUMITOMO	7165-1312	X995M	4
3	SUMITOMO	8100-3456	0.64x0.64FS	YE/WH	0.35	SUMITOMO	7165-1312	X995M	1
4	SUMITOMO	8100-3456	0.64x0.64FS	YE	0.35	SUMITOMO	7165-1312	X995M	19
5	SUMITOMO	8100-3456	0.64x0.64FS	VT	0.35	SUMITOMO	7165-1312	X995M	12
6	SUMITOMO	8100-3456	0.64x0.64FS	YE	0.35	SUMITOMO	7165-1312	X995M	15
7	SUMITOMO	8100-3456	0.64x0.64FS	RD	0.35	SUMITOMO	7165-1312	X326	9
8	SUMITOMO	8100-3456	0.64x0.64FS	VT	0.35	SUMITOMO	7165-1312	X326	5
9
10	SUMITOMO	8100-3456	0.64x0.64FS	GN	0.35	SUMITOMO	7165-1312
11	SUMITOMO	8100-3456	0.64x0.64FS	WH	0.35	SUMITOMO	7165-1312	X995M	7
12	SUMITOMO	8100-3456	0.64x0.64FS	RD/WH	0.35	SUMITOMO	7165-1312	X995M	3
13	SUMITOMO	8240-0288	0.64x0.64FS	BK/GY	0.50	SUMITOMO	7165-1199	X995M	10
14	SUMITOMO	8100-3456	0.64x0.64FS	BN	0.35	SUMITOMO	7165-1312	X995M	14
15	SUMITOMO	8100-3456	0.64x0.64FS	RD	0.35	SUMITOMO	7165-1312	X995M	17
16	SUMITOMO	8100-3456	0.64x0.64FS	BK	0.35	SUMITOMO	7165-1312	X326	8
17	SUMITOMO	8100-3456	0.64x0.64FS	GN	0.35	SUMITOMO	7165-1312	X326	4
18	SUMITOMO	8100-3456	0.64x0.64FS	GY	0.35	SUMITOMO	7165-1312	X326	6
19
20	SUMITOMO	8100-3456	0.64x0.64FS	BU	0.35	SUMITOMO	7165-1312	X995M	6
21	SUMITOMO	8100-3456	0.64x0.64FS	BN	0.35	SUMITOMO	7165-1312	X995M	8
22	SUMITOMO	8240-0288	0.64x0.64FS	RD/BU	0.50	SUMITOMO	7165-1199	X995M	2
23	SUMITOMO	8100-3456	0.64x0.64FS	YE/WH	0.35	SUMITOMO	7165-1312	X995M	18
24	SUMITOMO	8100-3456	0.64x0.64FS	GN	0.35	SUMITOMO	7165-1312	X995M	13
25	SUMITOMO	8100-3456	0.64x0.64FS	GY	0.35	SUMITOMO	7165-1312	X995M	16
26	SUMITOMO	8100-3456	0.64x0.64FS	YE	0.35	SUMITOMO	7165-1312	X326	3
27	SUMITOMO	8100-3456	0.64x0.64FS	BU	0.35	SUMITOMO	7165-1312	X326	10
28	SUMITOMO	8100-3456	0.64x0.64FS	WH	0.35	SUMITOMO	7165-1312	X326	1
29
30	SUMITOMO	8100-3456	0.64x0.64FS	BU/WH	0.35	SUMITOMO	7165-1312	X995M	5
