X331 - s-rhd-sop13

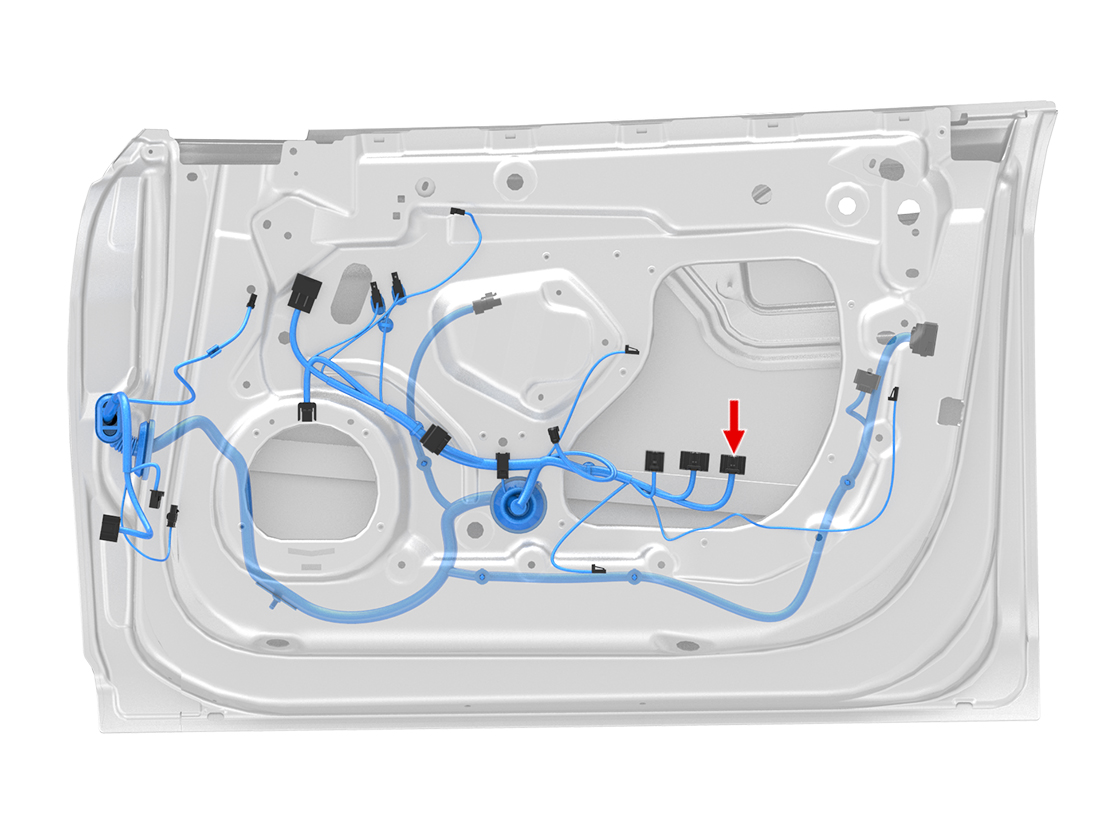

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | JAE | M34S75C4F1 | 0.8x0.64F | RD/GY | 0.35 | X342 | 8 | ||
| 2 | JAE | M34S75C4F1 | 0.8x0.64F | RD/GN | 0.35 | X944F | 7 | ||
| 3 | JAE | M34S75C4F1 | 0.8x0.64F | GN/WH | 0.35 | X929F | 9 | ||
| 4 | JAE | M34S75C4F1 | 0.8x0.64F | VT | 0.35 | ||||
| 5 | JAE | M34S75C4F1 | 0.8x0.64F | GY/WH | 0.35 | X342 | 2 | ||
| 6 | |||||||||
| 7 | JAE | M34S75C4F1 | 0.8x0.64F | YE/WH | 0.35 | X337 | 2 | ||
| 8 | JAE | M34S75C4F1 | 0.8x0.64F | OG | 0.35 | X336 | 3 | ||
| 9 | JAE | M34S75C4F1 | 0.8x0.64F | GY | 0.35 | ||||
| 10 | JAE | M34S75C4F1 | 0.8x0.64F | RD/YE | 0.35 | X346 | 2 | ||
| 11 | JAE | M34S75C4F1 | 0.8x0.64F | WH/BU | 0.35 | X346 | 12 | ||
| 12 | JAE | M34S75C4F1 | 0.8x0.64F | BN | 0.35 | X346 | 10 | ||
| 13 | |||||||||
| 14 | JAE | M34S75C4F1 | 0.8x0.64F | GY | 0.35 | X944F | 9 | ||
| 15 | JAE | M34S75C4F1 | 0.8x0.64F | BN/WH | 0.35 | X929F | 2 | ||
| 16 | JAE | M34S75C4F1 | 0.8x0.64F | YE | 0.35 | X929F | 1 | ||
| 17 | |||||||||
| 18 | JAE | M34S75C4F1 | 0.8x0.64F | WH/BU | 0.35 | X339 | 4 | ||
| 19 | JAE | M34S75C4F1 | 0.8x0.64F | GN | 0.35 | X336 | 2 | ||
| 20 | JAE | M34S75C4F1 | 0.8x0.64F | WH | 0.35 | ||||
| 21 | JAE | M34S75C4F1 | 0.8x0.64F | BK | 0.35 | X342 | 9 | ||
| 22 | JAE | M34S75C4F1 | 0.8x0.64F | BK/GY | 0.35 | X929F | 4 | ||
| 23 | JAE | M34S75C4F1 | 0.8x0.64F | BU | 0.35 | X346 | 3 | ||
| 24 | JAE | M34S75C4F1 | 0.8x0.64F | YE | 0.35 | X346 | 20 | ||
