X424 - s-rhd-sop13

Tesla Part Number

1015035-00-A

Connector

AMP 1534181-1

Color

BK

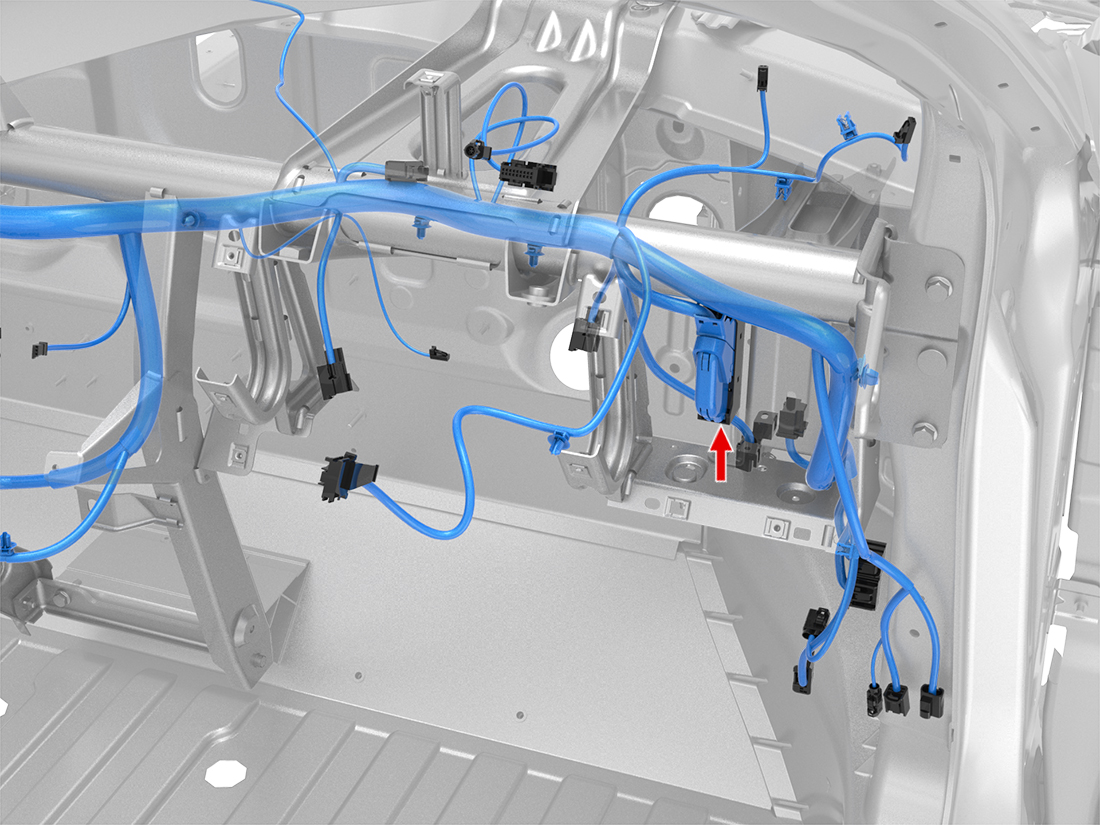

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
23	AMP	1564980-1	1.5x0.6F	GY	0.35			X427	1
24	AMP	1564980-1	1.5x0.6F	BU/WH	0.35			X427	3
25	AMP	1564980-1	1.5x0.6F	RD/WH	0.35			X427	5
26	AMP	1564980-1	1.5x0.6F	WH	0.35			X427	7
27	AMP	1564980-1	1.5x0.6F	GN/WH	0.35			X427	9
28	AMP	1564980-1	1.5x0.6F	BN	0.35			X427	11
29	AMP	1564980-1	1.5x0.6F	BU	0.35			X427	13
30	AMP	1564980-1	1.5x0.6F	RD	0.35			X427	15
31	AMP	1564980-1	1.5x0.6F	BK	0.35			X427	17
32	AMP	1564980-1	1.5x0.6F	GN	0.35			X427	19
