X441 - s-rhd-sop13

Tesla Part Number
1015267-00-A
Connector
MOLEX 31067-1011
Color
GY

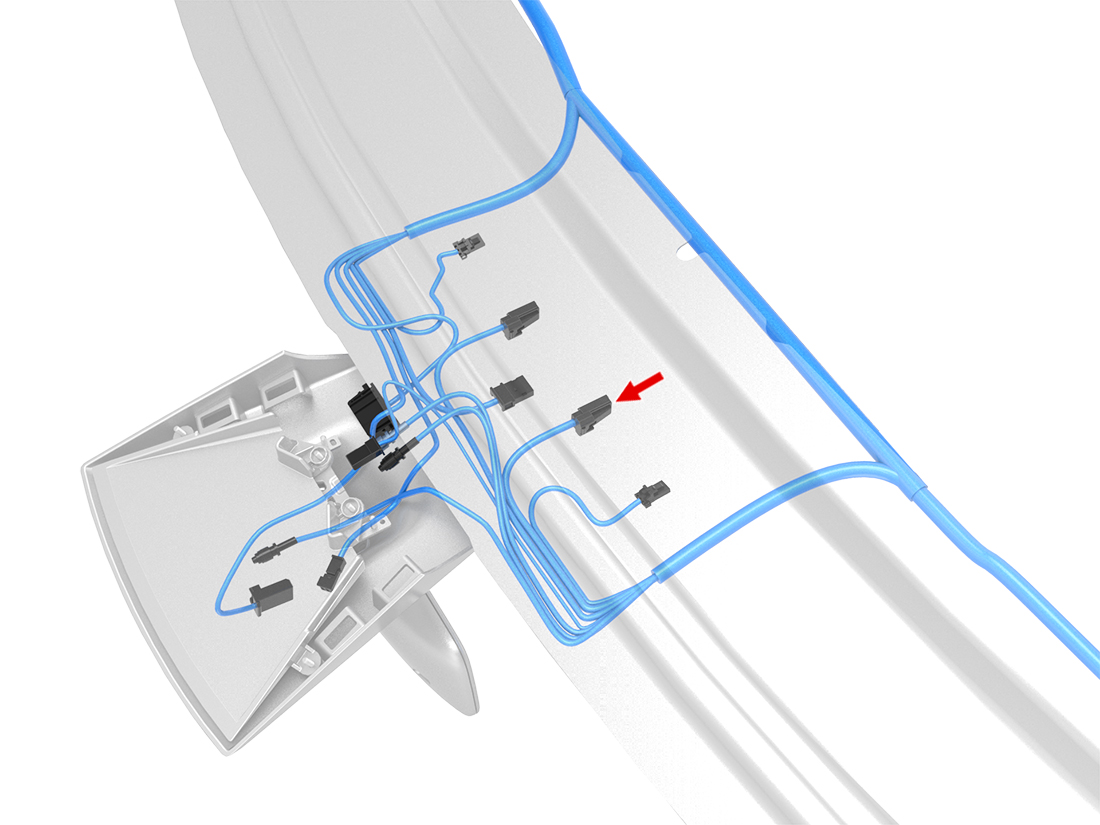

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP1393367-11.0x0.64FSI0.35X968F14
2AMP1393367-11.0x0.64FVT/WH0.35X968F12
3AMP1393367-11.0x0.64FVT0.35X968F13
