X523 - s-rhd-sop13

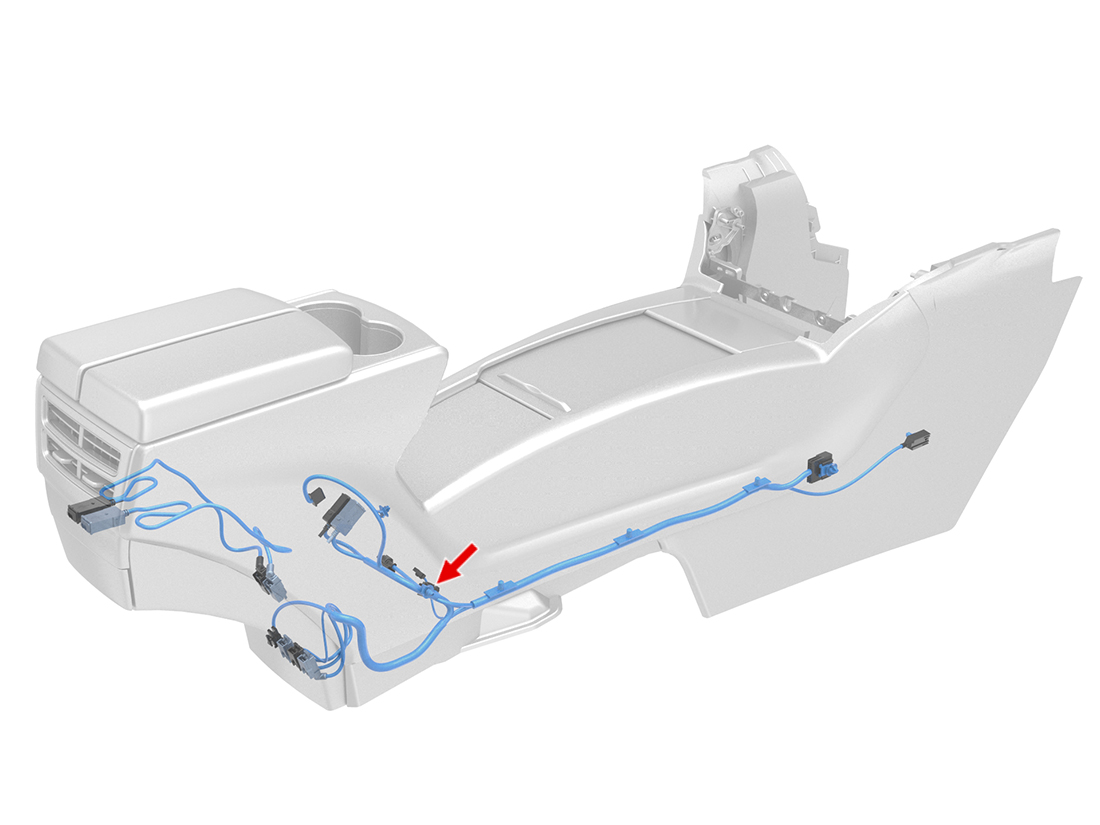

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-4271-02 | 2.8x0.8F | BK | 1.00 | X982M | 18 | ||
| 2 | YAZAKI | 7116-4271-02 | 2.8x0.8F | RD | 1.00 | X982M | 11 |
