X779 - s-rhd-sop13

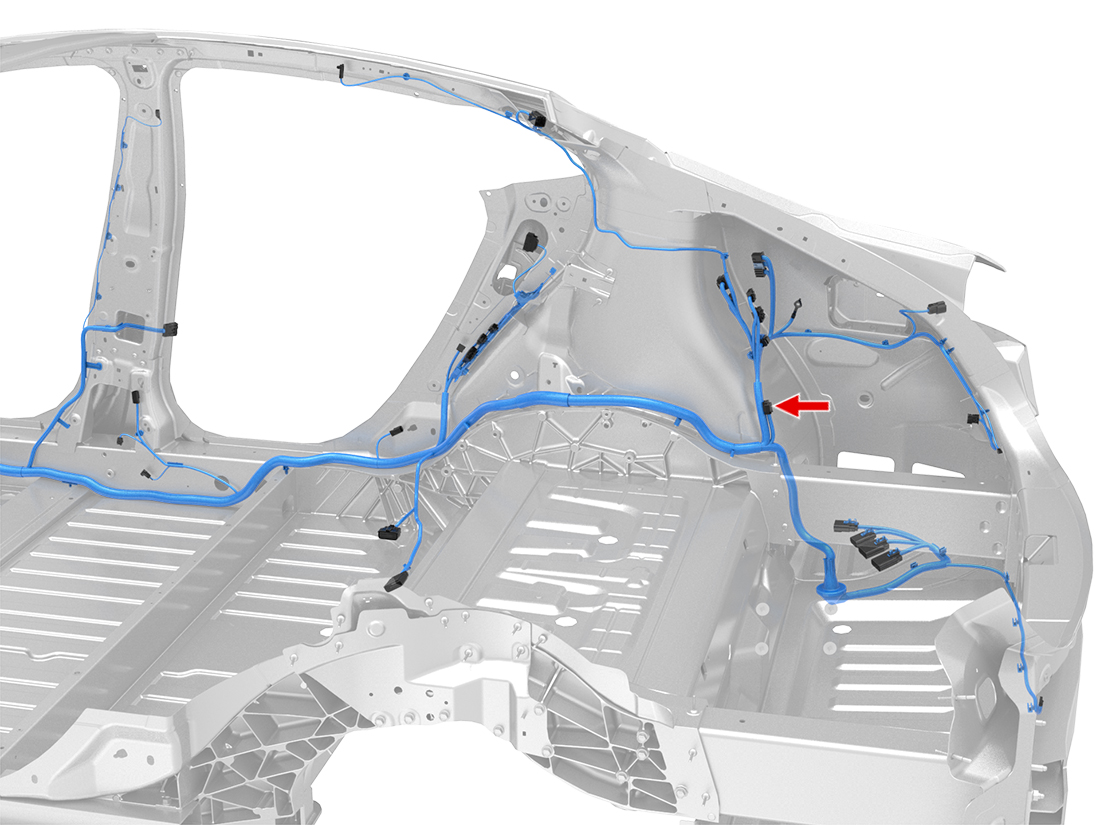

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/WH | 0.50 | X932M | 1 | ||
| 3 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/WH | 0.35 | X976M | 4 | ||
| 4 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/WH | 0.35 | X102 | 1 | ||
| 5 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/WH | 0.50 | X042A | 14 | ||
| 6 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/WH | 0.35 | X977F | 3 | ||
| 7 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN/WH | 0.35 | X102 | 3 | ||
| 8 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN/WH | 0.35 | X141 | 3 | ||
| 9 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN/WH | 0.35 | X976M | 5 | ||
| 10 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN/WH | 0.35 | X130B | 24 | ||
| 11 | |||||||||
| 12 | |||||||||
| 13 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.50 | X932M | 11 | ||
| 14 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.35 | X976M | 14 | ||
| 15 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.35 | X102 | 11 | ||
| 16 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.50 | X042A | 4 | ||
| 17 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.35 | X977F | 14 | ||
| 18 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN | 0.35 | X102 | 13 | ||
| 19 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN | 0.35 | X141 | 4 | ||
| 20 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN | 0.35 | X976M | 15 | ||
| 21 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN | 0.35 | X130B | 23 | ||
| 22 | |||||||||
