X811M - s-rhd-sop13

Tesla Part Number
1043847-03-A
Connector
ROSENBERGER 59Z116-000-D
Color
BO

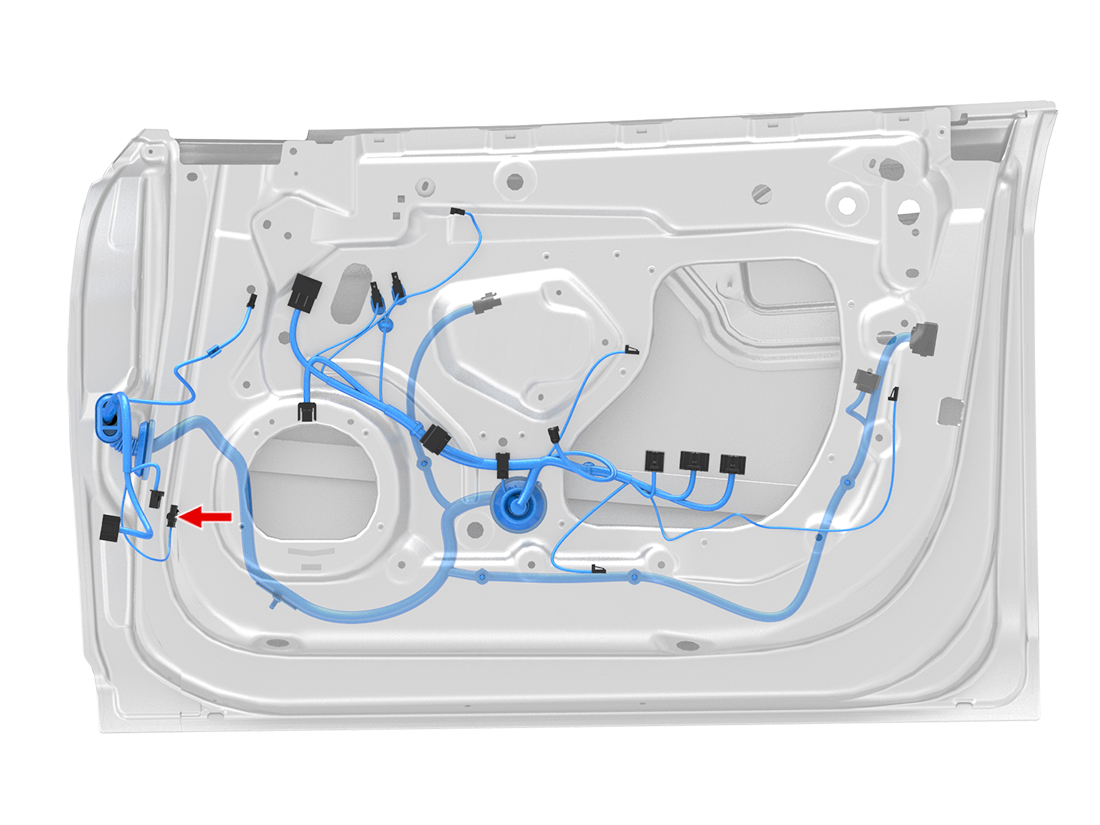

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59S16A-102T4COAXMBKRG316X8181
2ROSENBERGER59S16A-102T4COAXMBKRG316X8171
