X816 - s-rhd-sop13

Tesla Part Number
1058577-03-A
Connector
ROSENBERGER 59Z118-C00-D
Color
BO

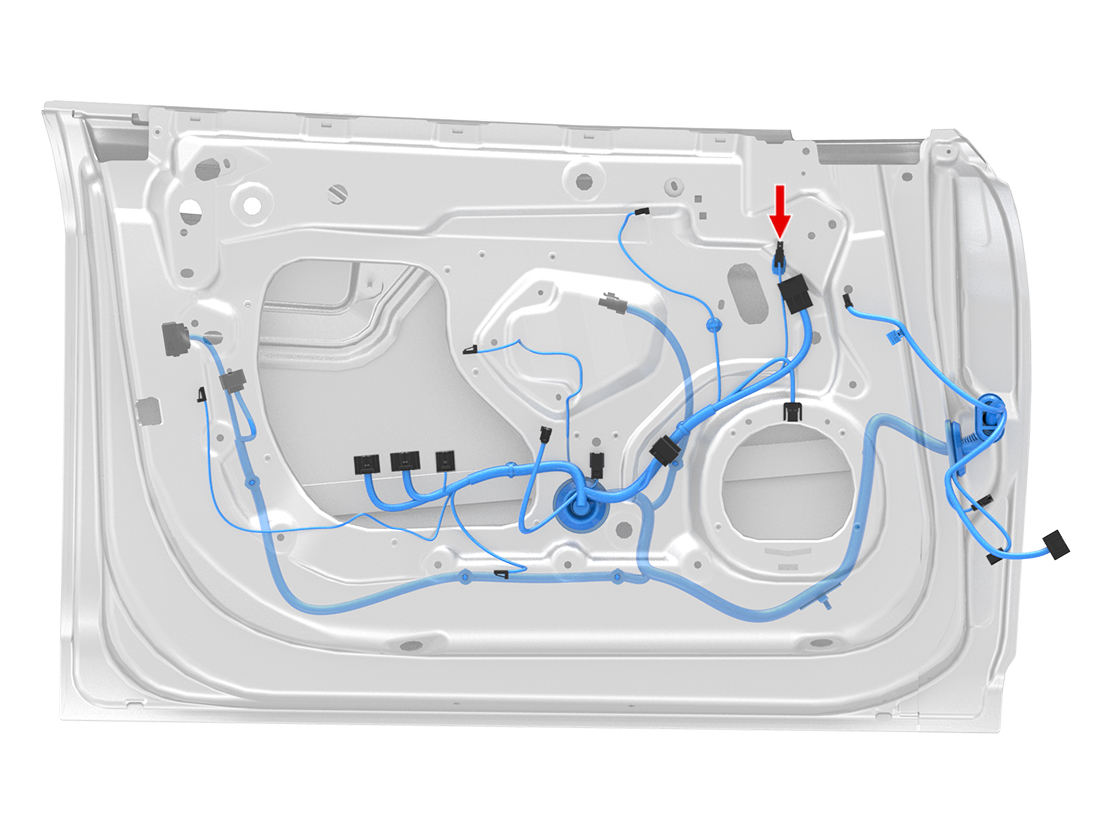

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59S16A-102T4COAXMBKRG316X809F1
