X909F - s-rhd-sop13

Tesla Part Number

1003314-00-A

Connector

MOLEX 33472-1201

Color

BK

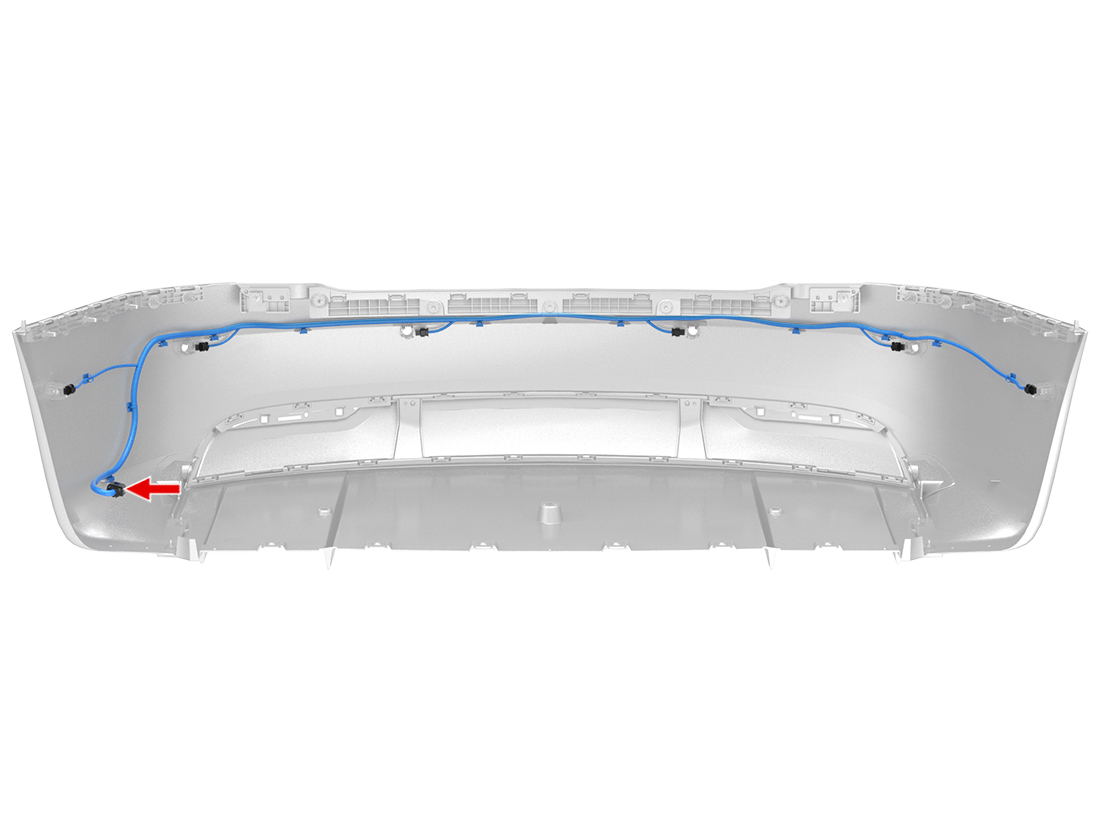

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3003	1.5x0.8F	RD/YE	0.50	TESLA	MAT-120-240
2	MOLEX	33012-3003	1.5x0.8F	BK	0.50	TESLA	MAT-120-240
3	MOLEX	33012-3003	1.5x0.8F	VT/WH	0.50	TESLA	MAT-120-240	X763	6
4	MOLEX	33012-3003	1.5x0.8F	VT	0.50	TESLA	MAT-120-240	X763	3
5	MOLEX	33012-3003	1.5x0.8F	GN/WH	0.35	TESLA	MAT-120-240
6	MOLEX	33012-3003	1.5x0.8F	RD/WH	0.35	TESLA	MAT-120-240	X121A	2
7	MOLEX	33012-3003	1.5x0.8F	OG	0.35	TESLA	MAT-120-240	X122A	2
8	MOLEX	33012-3003	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X123A	2
9	MOLEX	33012-3003	1.5x0.8F	YE/WH	0.35	TESLA	MAT-120-240	X124A	2
10	MOLEX	33012-3003	1.5x0.8F	BK/WH	0.35	TESLA	MAT-120-240
11	MOLEX	33012-3003	1.5x0.8F	BU/WH	0.35	TESLA	MAT-120-240	X134A	2
12	MOLEX	33012-3003	1.5x0.8F	BN	0.35	TESLA	MAT-120-240	X135A	2
