X921F - s-rhd-sop13

Tesla Part Number

1042580-00-A

Connector

SUMITOMO 6098-3917

Color

WH

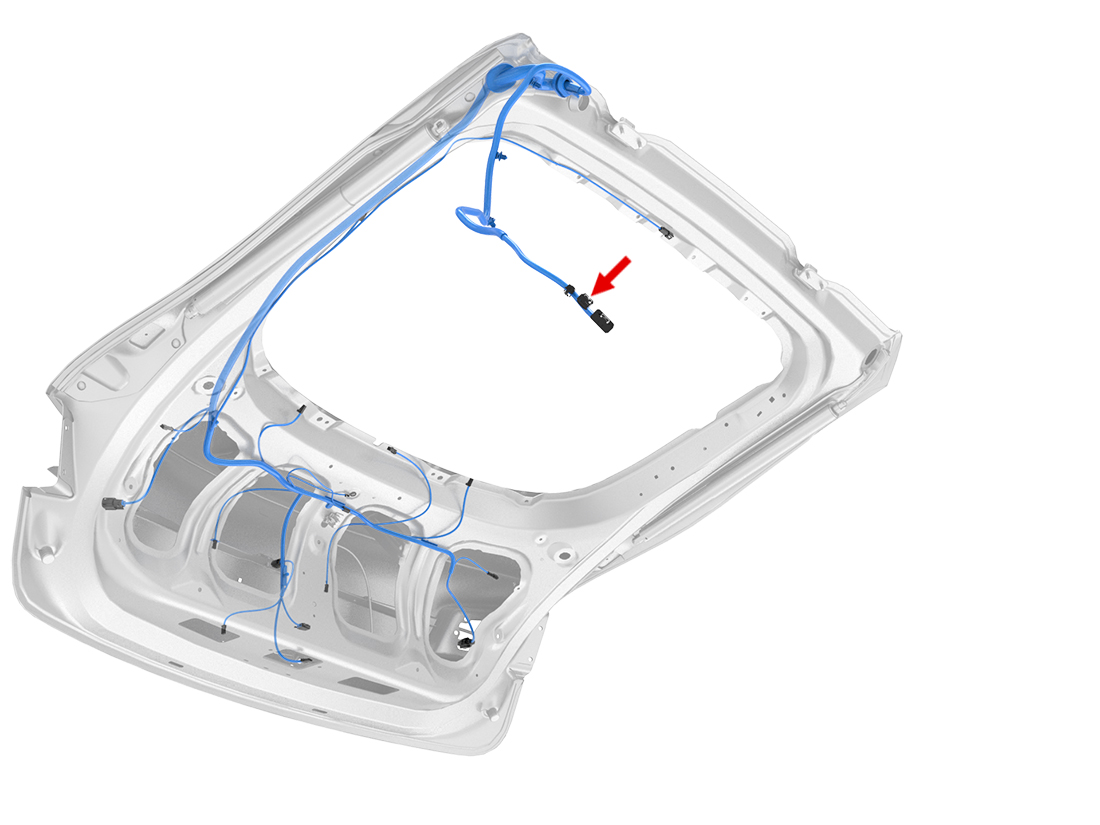

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	WH/RD	0.35			X292	1
2	SUMITOMO	8100-3625	0.64x0.64F	WH/BU	0.35			X385	3
3	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X385	1
4	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35
5	SUMITOMO	8100-3625	0.64x0.64F	RD/GY	0.50			X271	1
6	SUMITOMO	8100-3625	0.64x0.64F	RD/BK	0.50			X271	3
7
8	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X387	1
9	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X385	4
10
11	SUMITOMO	8100-3625	0.64x0.64F	WH/BK	0.50			X269	A
12	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.50			X273	1
13	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X273	3
14
