X921M - s-rhd-sop13

Tesla Part Number

1042579-00-A

Connector

SUMITOMO 6098-3877

Color

WH

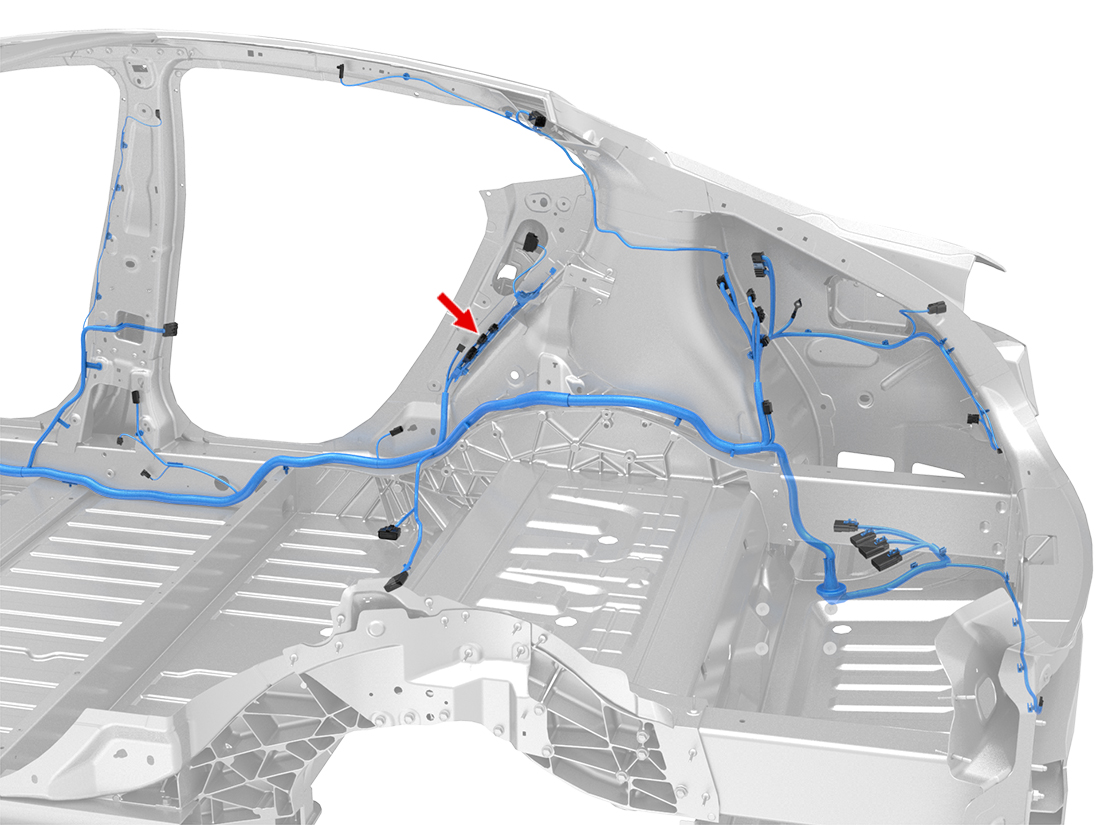

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3623	0.64x0.64M	WH/RD	0.35			X988F	11
2	SUMITOMO	8100-3623	0.64x0.64M	WH/BU	0.35			X774	6
3	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X988F	12
4	SUMITOMO	8100-3623	0.64x0.64M	OG	0.35			X988F	25
5	SUMITOMO	8100-3623	0.64x0.64M	RD/GY	0.35			X988F	20
6	SUMITOMO	8100-3623	0.64x0.64M	RD/BK	0.35			X977F	7
7
8	SUMITOMO	8100-3623	0.64x0.64M	GY/WH	0.35			X988F	13
9	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X774	17
10
11	SUMITOMO	8100-3623	0.64x0.64M	WH/BK	0.35			X977F	15
12	SUMITOMO	8100-3623	0.64x0.64M	BN/WH	0.35
13	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X977F	16
14
