X930F - s-rhd-sop13

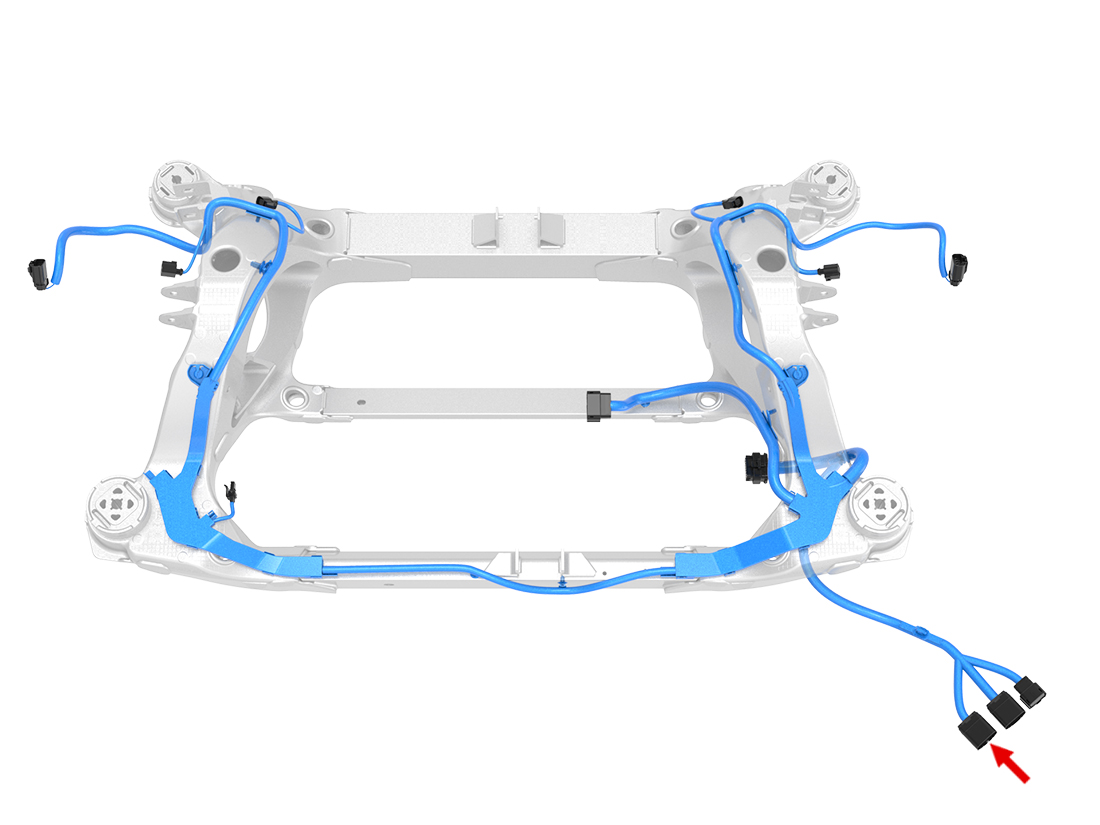

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | FCI | 54001400 | 2.8x0.8F | GY | 2.00 | TESLA | MAT-170-409 | X103 | 4 |
| 2 | FCI | 54001625 | 1.5x0.8F | RD | 1.00 | TESLA | MAT-140-240 | X254 | 1 |
| 3 | |||||||||
| 4 | FCI | 54002000 | 1.5x0.8F | GN | 0.50 | TESLA | MAT-140-240 | X254 | 2 |
| 5 | |||||||||
| 6 | |||||||||
| 7 | FCI | 54001400 | 2.8x0.8F | RD/WH | 2.00 | TESLA | MAT-170-409 | X104 | 4 |
| 8 | FCI | 54001400 | 2.8x0.8F | BK/WH | 2.00 | TESLA | MAT-170-409 | X103 | 1 |
| 9 | FCI | 54001625 | 1.5x0.8F | BK | 1.00 | TESLA | MAT-140-240 | X254 | 3 |
| 10 | |||||||||
| 11 | |||||||||
| 12 | |||||||||
| 13 | |||||||||
| 14 | FCI | 54001400 | 2.8x0.8F | RD/VT | 2.00 | TESLA | MAT-170-409 | X104 | 1 |
