X931M - s-rhd-sop13

Tesla Part Number

1045247-00-A

Connector

FCI 54251403

Color

GN

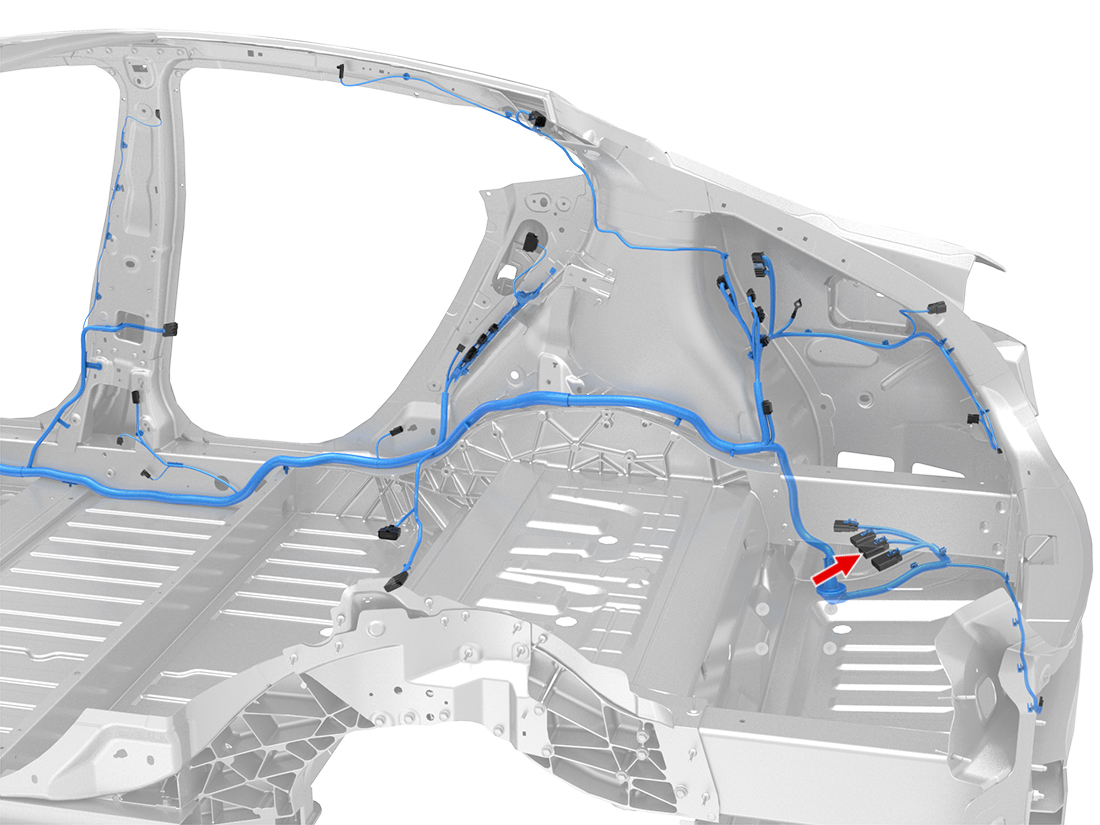

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	FCI	54001801	2.8x0.8M	RD/BK	0.75	TESLA	MAT-170-409	X573	8
2	FCI	54002001	1.5x0.6M	OG	0.50	TESLA	MAT-140-240	X987F	2
3	FCI	54002001	1.5x0.6M	GY	0.50	TESLA	MAT-140-240	X987F	3
4	FCI	54002001	1.5x0.6M	GN	0.50	TESLA	MAT-140-240	X987F	9
5	FCI	54002001	1.5x0.6M	RD/YE	0.50	TESLA	MAT-140-240	X976M	9
6	FCI	54002001	1.5x0.6M	YE	0.50	TESLA	MAT-140-240	X042A	13
7	FCI	54001801	2.8x0.8M	BK	0.75	TESLA	MAT-170-409	G700	1
8	FCI	54001801	2.8x0.8M	RD/BU	0.75	TESLA	MAT-170-409	X573	2
9	FCI	54002001	1.5x0.6M	BU/WH	0.50	TESLA	MAT-140-240	X987F	4
10	FCI	54002001	1.5x0.6M	BU	0.50	TESLA	MAT-140-240	X987F	5
11	FCI	54002001	1.5x0.6M	BK/VT	0.50	TESLA	MAT-140-240	X987F	10
12	FCI	54002001	1.5x0.6M	GN/WH	0.50	TESLA	MAT-140-240	X987F	7
13	FCI	54002001	1.5x0.6M	WH	0.50	TESLA	MAT-140-240	X573	7
14	FCI	54001801	2.8x0.8M	VT/WH	0.75	TESLA	MAT-170-409	X042A	12
