X945F - s-rhd-sop13

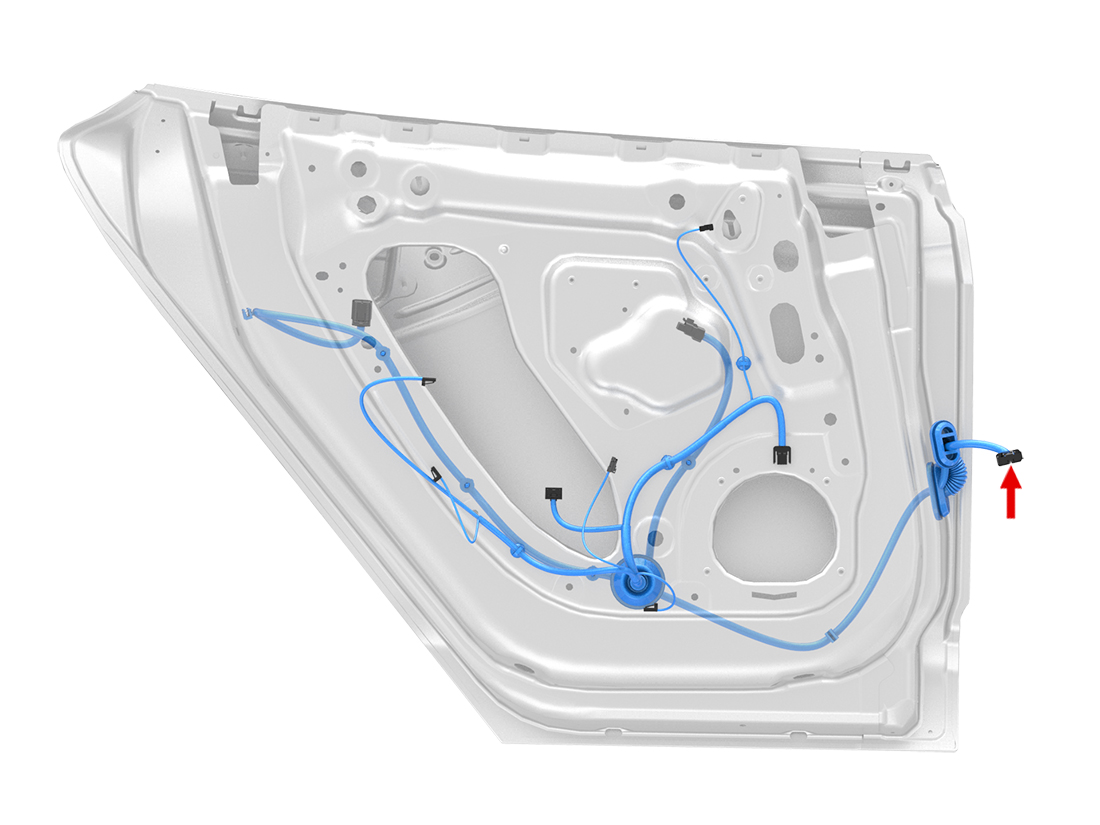

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0214 | 1.5x0.64F | RD/GN | 1.50 | X366 | 3 | ||
| 2 | SUMITOMO | 8240-0215 | 1.5x0.64F | BU | 0.35 | X359 | 11 | ||
| 3 | |||||||||
| 4 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH | 0.50 | ||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/BU | 0.35 | X359 | 4 | ||
| 8 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/WH | 0.35 | X361 | 1 | ||
| 9 | SUMITOMO | 8240-0215 | 1.5x0.64F | VT | 0.35 | X364 | 1 | ||
| 10 | SUMITOMO | 8240-0214 | 1.5x0.64F | RD/WH | 1.50 | X411 | 1 | ||
| 11 | SUMITOMO | 8240-0214 | 1.5x0.64F | BK | 2.00 | ||||
| 12 | SUMITOMO | 8240-0215 | 1.5x0.64F | GN/WH | 0.35 | ||||
| 13 | |||||||||
| 14 | |||||||||
| 15 | |||||||||
| 16 | SUMITOMO | 8100-3625 | 0.64x0.64F | GY | 0.35 | X365 | 3 | ||
| 17 | SUMITOMO | 8240-0215 | 1.5x0.64F | VT/WH | 0.50 | X366 | 2 | ||
| 18 | SUMITOMO | 8240-0214 | 1.5x0.64F | GY | 1.50 | X411 | 2 | ||
