X946M - s-rhd-sop13

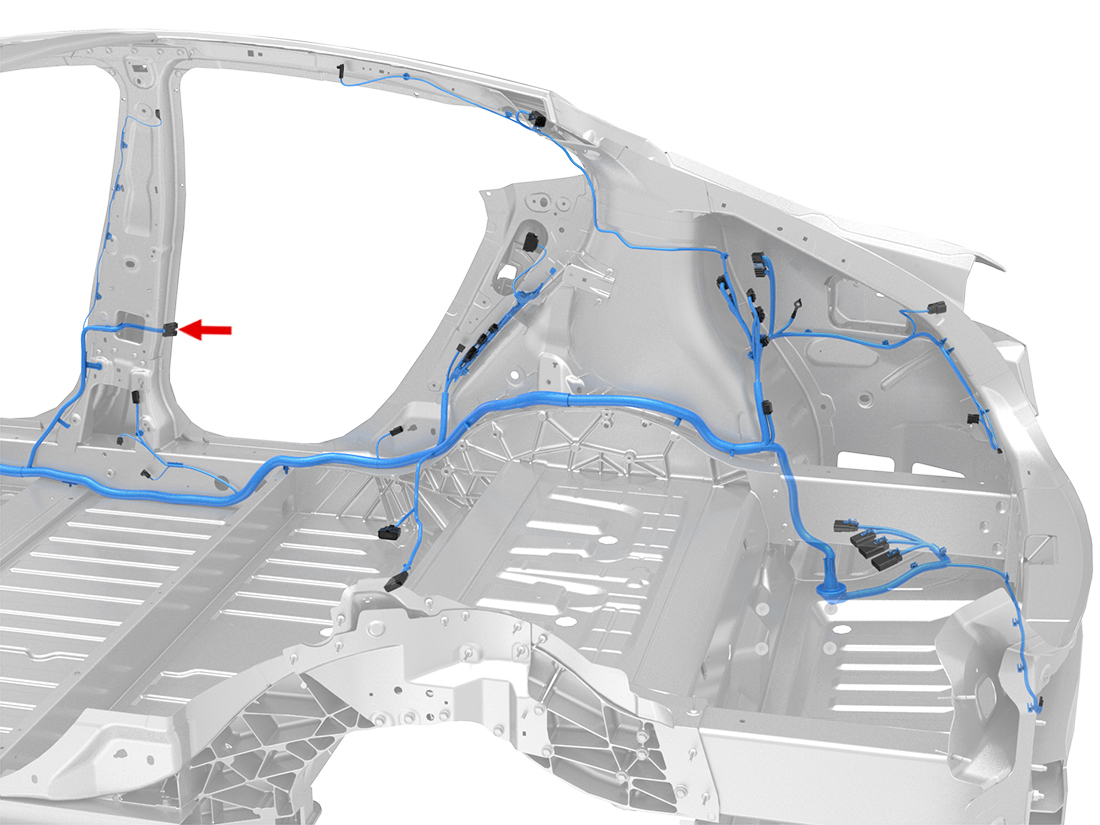

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4923 | 1.5x0.6M | RD/GN | 1.50 | X574 | 7 | ||
| 2 | SUMITOMO | 8230-4925 | 1.5x0.6M | BU | 0.35 | X573 | 3 | ||
| 3 | |||||||||
| 4 | SUMITOMO | 8100-3623 | 0.64x0.64M | WH | 0.35 | X987F | 12 | ||
| 5 | |||||||||
| 6 | |||||||||
| 7 | SUMITOMO | 8100-3623 | 0.64x0.64M | BN/WH | 0.35 | X929M | 2 | ||
| 8 | SUMITOMO | 8100-3623 | 0.64x0.64M | YE | 0.35 | X929M | 1 | ||
| 9 | SUMITOMO | 8230-4925 | 1.5x0.6M | VT | 0.35 | X929M | 6 | ||
| 10 | SUMITOMO | 8230-4923 | 1.5x0.6M | RD | 1.50 | X970M | 2 | ||
| 11 | SUMITOMO | 8230-4923 | 1.5x0.6M | BK | 2.00 | G700 | 1 | ||
| 12 | SUMITOMO | 8230-4925 | 1.5x0.6M | GN/WH | 0.35 | X929M | 9 | ||
| 13 | |||||||||
| 14 | |||||||||
| 15 | |||||||||
| 16 | SUMITOMO | 8100-3623 | 0.64x0.64M | GY | 0.35 | X929M | 8 | ||
| 17 | SUMITOMO | 8230-4925 | 1.5x0.6M | YE | 0.35 | ||||
| 18 | SUMITOMO | 8230-4923 | 1.5x0.6M | RD/BK | 1.50 | X970M | 9 | ||
