X954F - s-rhd-sop13

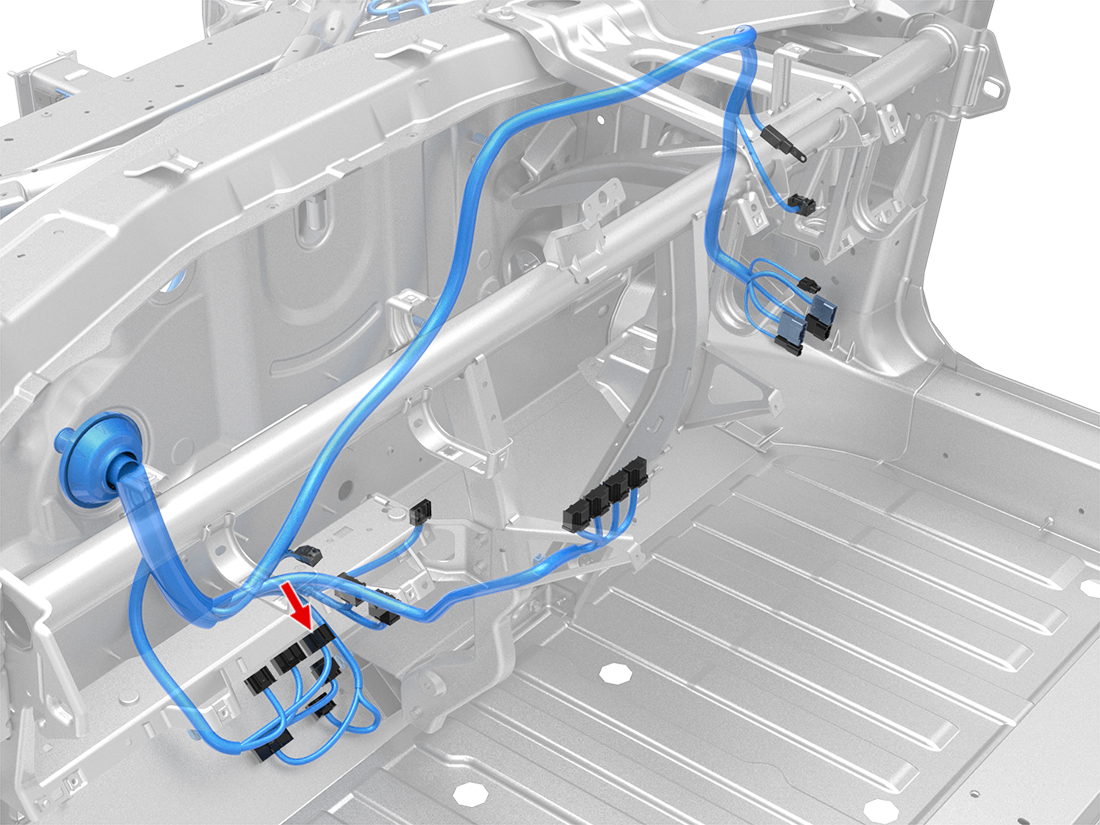

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/YE | 0.35 | X960M | 13 | ||
| 3 | |||||||||
| 4 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.35 | ||||
| 5 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/GN | 0.35 | ||||
| 6 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/BK | 0.50 | X563 | 39 | ||
| 7 | SUMITOMO | 8100-3625 | 0.64x0.64F | SI | 0.35 | ||||
| 8 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/GY | 0.35 | X051 | 16 | ||
| 9 | |||||||||
| 10 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN | 0.50 | X237 | 2 | ||
| 11 | SUMITOMO | 8100-3625 | 0.64x0.64F | YE/WH | 0.50 | ||||
| 12 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/VT | 0.35 | X960M | 4 | ||
| 13 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH/BK | 0.35 | X960M | 5 | ||
| 14 | SUMITOMO | 8240-0215 | 1.5x0.64F | RD/GN | 0.35 | X960M | 6 | ||
| 15 | SUMITOMO | 8240-0215 | 1.5x0.64F | GY/WH | 0.35 | X960M | 7 | ||
| 16 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH | 0.35 | X051 | 6 | ||
| 17 | SUMITOMO | 8100-3625 | 0.64x0.64F | BK/VT | 0.35 | X966M | 18 | ||
| 18 | SUMITOMO | 8100-3625 | 0.64x0.64F | VT/WH | 0.35 | ||||
| 19 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN/WH | 0.35 | ||||
| 20 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.35 | X480 | 1 | ||
| 21 | SUMITOMO | 8100-3625 | 0.64x0.64F | BK | 0.35 | X480 | 3 | ||
| 22 | SUMITOMO | 8100-3625 | 0.64x0.64F | VT | 0.50 | X237 | 1 | ||
| 23 | SUMITOMO | 8100-3625 | 0.64x0.64F | YE | 0.50 | ||||
| 24 | |||||||||
| 25 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH/BU | 0.35 | X960M | 11 | ||
| 26 | SUMITOMO | 8240-0214 | 1.5x0.64F | RD/WH | 1.50 | X563 | 2 | ||
